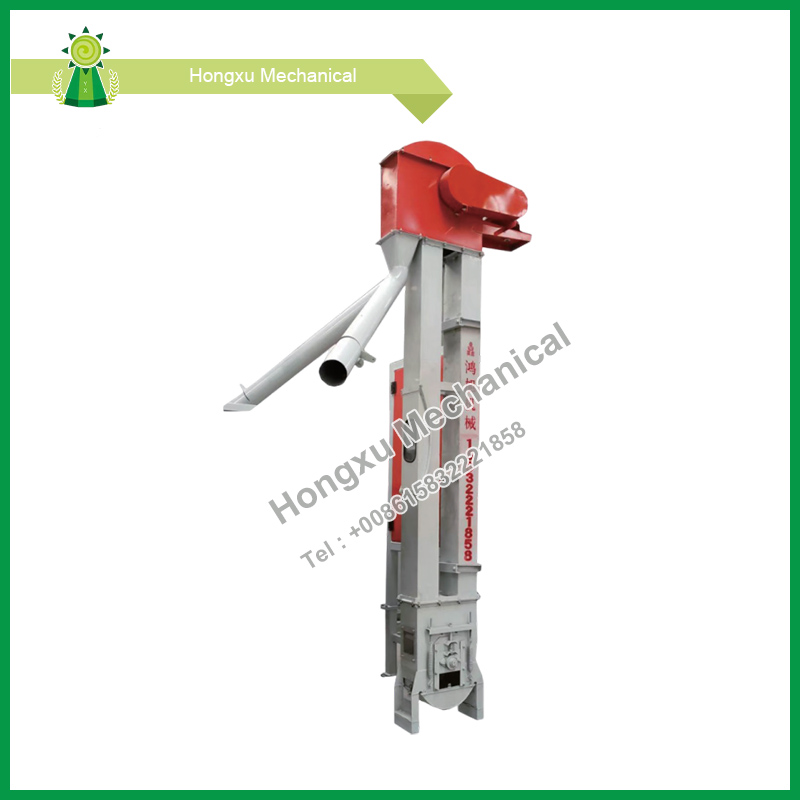

Belt Bucket Elevator

Hongxu Machinery Belt Bucket Elevator provides continuous vertical conveying for plastic recycling plants and industrial production lines. It moves crushed plastics, pellets, powders and small bulk materials from lower to higher processing stages, helping reduce manual handling and save installation space.

Send Inquiry

Product Description

The belt bucket elevator continuously moves powdery, granular and small lump materials from lower to higher processing stages. It supports automated material transfer between different production processes while reducing manual handling and labor requirements.

Operating principle:

Material is fed into the buckets at the bottom of the elevator. An endless belt moves the buckets continuously along the vertical conveying path. At the top, the buckets discharge the material through the combined effect of the elevator's movement and gravity, allowing continuous transfer to the next processing stage.

Equipment parameters:

Model	Motor Power	Capacity
1413	1.5 kW	1–2 t/h
1715	1.5 kW	2–3 t/h
2017	2.2 kW	3–4 t/h

Remark:The table shows three standard models.The power is standard for this model.Customization is available.Taking PP crushed material as an example.

Craftsmanship:

1. Shell machining:The reinforced steel structure improves frame stability during continuous operation and reduces deformation caused by long-term vibration.

2. Welding process:Key frame and enclosure joints are welded to maintain structural integrity during continuous operation.

3. Surface treatment:Carbon steel models receive anti-corrosion coating, while stainless steel models are polished according to the selected configuration. The surface treatment is selected according to the equipment material and intended operating environment.

Belt Bucket Elevator

Key features:

1.Compact Vertical Design:The vertical conveying structure requires less floor space than many inclined conveying layouts, making it suitable for production lines where installation space is limited.

2. Capacity for Continuous Material Transfer:For PP crushed material, the standard models provide capacities from 1 to 4 t/h. The appropriate model can be selected according to required throughput, material characteristics and production-line layout.

3. Excellent airtight and environmentally friendly design:Fully enclosed shell design,Significantly reduce dust leakage.Avoid secondary contamination of materials.

4. Viewable window:Belt bucket elevators are equipped with a visual window as standard.In case of malfunction, it facilitates internal troubleshooting of abnormal conditions.

Applicable materials:

1. Conventional granular materials:Plastic pellets, grains, compound fertilizers, plastic particles, etc.

2. Powdered materials:Plastic powder, chemical powder, ultrafine powder from grinding mills, etc.

3. Block materials:Waste plastic bottles, broken plastic pieces, small pieces of ore, etc.

Reasons for choosing us:

1. Company Strength:Hongxu Machinery has been deeply involved in the field of solid waste sorting for more than ten years.We have accumulated hundreds of customers.Own CNC machining center,It has personnel in design and development, production and processing, sales and service.Achieve end-to-end quality control for products from scratch.

2. Customized services:Hongxu Machinery can meet customers' customized needs.Taking a belt bucket elevator as an example,In addition to regular models,We can design and modify the equipment or upgrade its components according to the customer's actual requirements.Meets diverse usage scenarios.

3. After-sales service:Hongxu Machinery promises that Quality problems occurring within one year, excluding those caused by human error.We will provide free repair or replacement.We are committed to protecting our customers' rights.
