Dry Plastic Friction Machine

Dry plastic friction machine is a material cleaning equipment launched by China Hongxu Machinery,A zero-pollution cleaning solution specifically designed for soft plastics such as used agricultural film,plastic film,and woven bags,which are prone to "mud accumulation and entanglement.",The operation process does not require water consumption,Fully dry operation,Assist you in easily obtaining environmental approval.

Send Inquiry

Product Description

1. Product Functions:Dry plastic friction machines are specifically designed for processing soft plastics such as greenhouse film,agricultural film,woven bags,and drip irrigation tape,It can efficiently remove impurities such as dust,mud,and pulp adhering to the surface of materials,This facilitates subsequent sorting and recycling.

2. Operating principle:The internally rotating blades cause the material to collide,tumble,and rub at high speed,By utilizing the mutual friction between materials and between materials and the inner wall,Remove impurities from the surface of the material.

3. Materials used:The fuselage is constructed using a thickened manganese iron fully welded process,Shock-resistant and wear-resistant,It can be turned on continuously for 24 hours without shaking;The internal screen is made of high-grade stainless steel,Corrosion and rust prevention,Service life extended by 3 times.

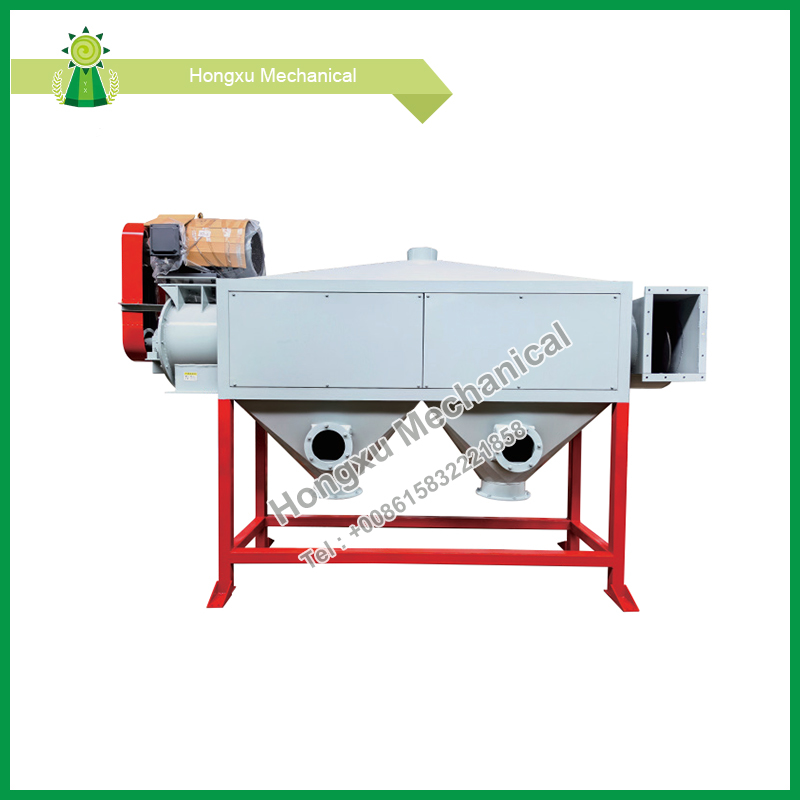

Dry Plastic Friction Machine

4. Common Specifications:

Model:M500,M600,M800,M1000.

Power:30-55 kW (different models and production requirements require different power motors).

Output:1-5 t/h (If it is dust,mud,or other easily cleanable stains,Production can reach 3-5 tons;If it is oil stains,gel,or other difficult-to-clean stains,Production is generally between 1 and 3 tons).

5. Parameter Comparison:

	Hongxu Machinery	Ordinary on the market
Cleaning effect	Dry plastic friction machines can reach speeds of over 600 r/min(Equipped with a high-spec motor and a dynamically balanced spindle,It remains stable even at high speeds,No motor burnout),Through high-frequency impact of high-speed striking plate,This increases the frequency of friction between materials and between materials and the cavity wall by more than two times,Stubbornly attached impurities are removed more thoroughly,Cleanliness rate ≥ 99%.	The rotational speed of ordinary friction machines is mostly below 300 r/min,The material is washed by low-speed blades alone,Cleaning rate around 85%
Production efficiency	Different materials affect output,Total hourly output ranges from 1 to 5 tons,Overall output is relatively high.	Total hourly output ranges from 1 to 3 tons,Overall output is relatively small.
Space utilization	The footprint of different models of single units ranges from approximately 1.5 to 2.5 square meters,Saves half the space compared to traditional equipment,This means that in the same factory building,You can put twice as many devices in,Production capacity doubled.	The footprint of a single unit varies from approximately 3.5 to 4.5 square meters depending on the model,Low space utilization.
Environmental protection	The equipment has a closed structure,Equipped with dustproof device,Dustproof rate up to 99%,This not only makes the subsequent purified materials have better color and higher selling price,It also eliminates the need for expensive water treatment equipment and sewage fees,Save tens of thousands of yuan in water bills every year.	The machines mostly adopt a semi-open structure,The plastic dust and lightweight fibers generated during the process are difficult to collect and treat.

The above data are all based on feedback from 50 greenhouse film recycling customers of Hongxu Machinery, who have actually put their products into production.

Maintenance Guide:

Dry plastic friction machines have a simple structure,Easy to maintain,Routine maintenance only requires wiping and inspecting key components. We solemnly promise that,The whole machine is guaranteed for one year,Excluding equipment malfunctions caused by human error within one year,Please contact us promptly,We will provide a revised plan within 24 hours of receiving your message.
