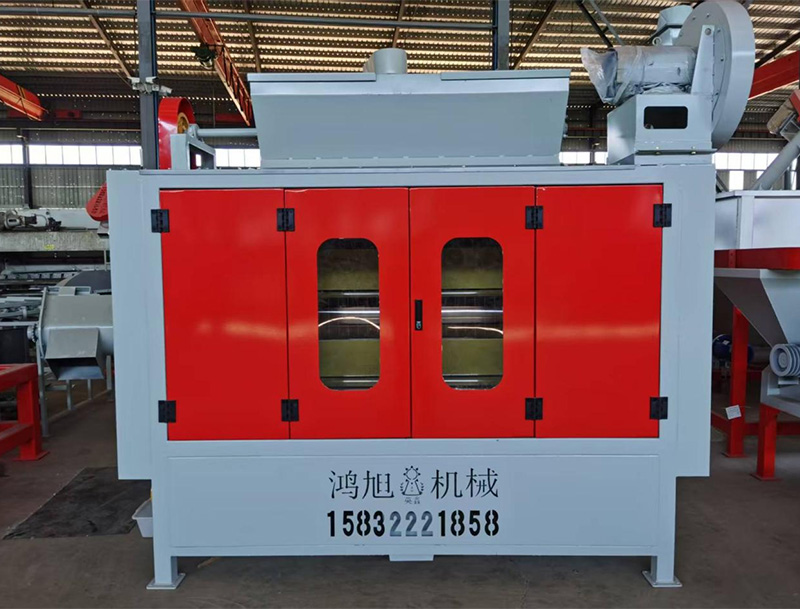

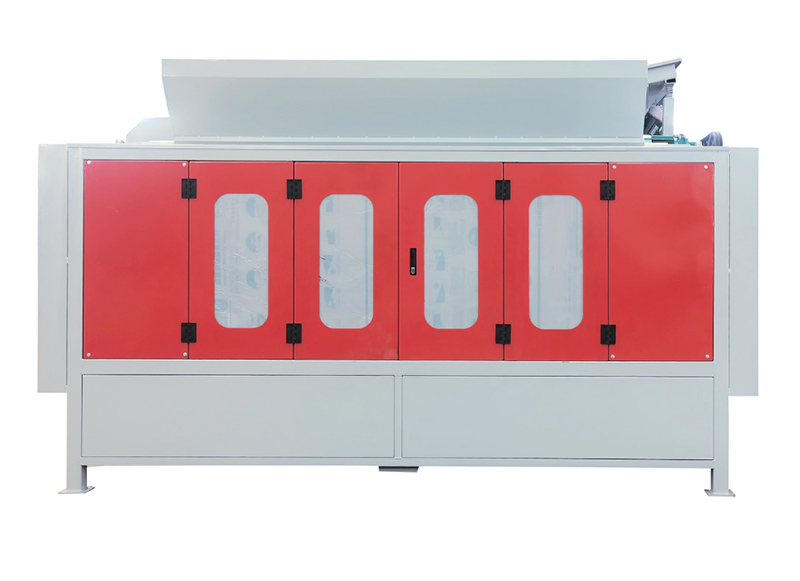

Electrostatic Aluminum Plastic Separation Machine

1. Core Functions：This Electrostatic aluminum plastic separation machine separates pre-treated aluminum and plastic particles by taking advantage of their different electrical conductivity properties, and produces high-purity finished aluminum and plastic products. The entire running process does not use any process water or chemical additives, which significantly reduces wastewater discharge and chemical consumption. It realizes the high-efficiency sorting and full-value recycling of aluminum-plastic waste.

2. Equipment parameters:

 Machine Length: 2000mm, 3000mm;

 Power: 3.15kW;

Capacity: 0.5-1 t/h.

3. Material Breakdown：This equipment mainly consists of four core parts: roller, wire mesh, auger and outer housing. The roller is constructed from 201 mirror-polished stainless steel, while the wire mesh, auger and outer casing are all made of Q235 carbon steel.

4. Operating principle: Electrostatic aluminum plastic separation machines utilize the difference in electrical conductivity between conductors (aluminum) and non-conductors (plastic), Directional separation is achieved by combining a high-voltage electrostatic field, The operation is carried out using a combination of rollers and wire mesh, It ionizes the surrounding air, The aluminum-plastic mixture entering the electric field is charged with different properties of charge, Charged aluminum metal rapidly releases its charge under the influence of an electric field, Under the influence of centrifugal force and gravity, they detach from the drum and fall into the metal collection area; The insulating plastic granules are then adsorbed by the rotating drum, Subsequently, the material is peeled off by the unloading brush and enters the plastic collection area.

5.Applicable Industries: Electrostatic aluminum-plastic separators are highly versatile across multiple scenarios. Its core applicable industries cover waste circuit board recycling, auto component recycling, and other aluminum-plastic composite waste recovery fields. It acts as a key supporting equipment in renewable resource recycling and corresponding secondary processing links.

6.Advantages and characteristics:

Physical Property Retention：The separation process works purely through physical force and electrostatic action, with no chemical treatment involved. The recycled aluminum and plastic can fully retain their original physical properties, and are directly qualified for subsequent downstream recycling procedures.

 High Separation Purity：When processing aluminum-plastic film under proper feeding conditions, the impurity content after separation can be kept at ≤1%, and the final material purity can hit as high as 99%. The actual separation performance will differ based on the feed composition, material particle size, moisture content and on-site operating conditions.

Dry Separation with Reduced Water and Chemical Use:This separation method uses zero process water or chemical reagents throughout the whole workflow. You can pair the enclosed sorting chamber with dust extraction units, to effectively keep dust generation under control during the running process.

 Wide adaptability: Electrostatic aluminum plastic separation machine can process mixtures of materials such as aluminum-plastic blister packs, aluminum-plastic packaging bags, and aluminum-plastic sheet scraps.

Maintenance Recommendations and Other Precautions:

Daily Maintenance of Electrostatic Aluminum-Plastic Separator

Before powering on, check that the drive belt has proper tension and all fasteners are fully locked without loosening. Empty all leftover materials inside the unit to fundamentally prevent material buildup and the extra abrasion it causes. Conduct routine inspections on the surface cleanliness of electrodes and the operating status of all circuits, to ensure the equipment runs stably all the time.

 Material Requirements:

Dimensions:

Recommended Particle Size: ≤5 mm;

Maximum Material Length: 10 mm.

Moisture Condition: Materials should be sufficiently dry before separation, as excessive moisture may affect electrostatic separation.
