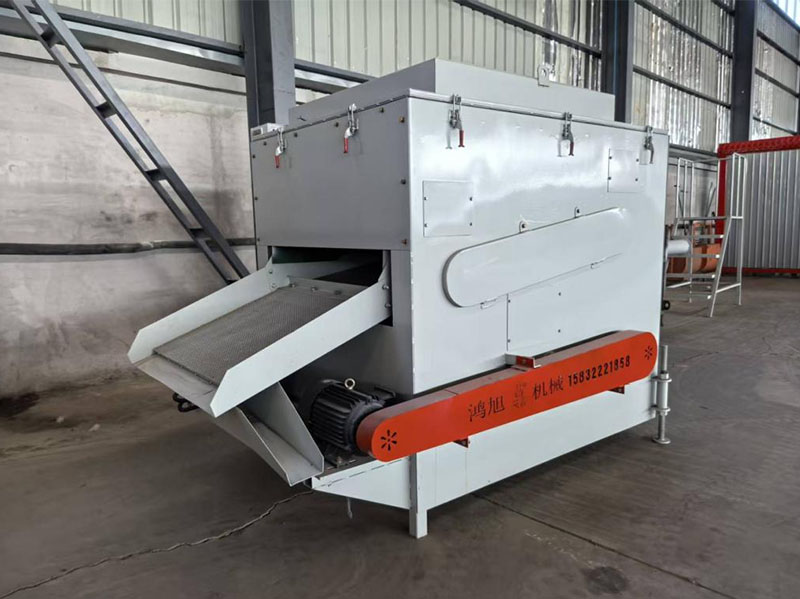

Gravity Difference Sorting Machine

1. Function: The gravity difference sorting machine is based on the density difference of different plastic materials (such as PP/PE density less than water, PVC density greater than water),To achieve stratification and separation of light and heavy components in a medium flow.Perform preliminary sorting on the crushed mixed plastic sheets,Removes high-density impurities (such as sand and metal residues) or separates specific components (such as PVC and PET).Improve the efficiency of subsequent fine sorting and adapt to different process requirements.

2. Standard sizes: 1000mm, 1500mm, 2000mm.

3. Power: 9-30 kW.

4. Hourly production: 2-20 t/h.

5. Material Description: The body is made of robust and long-lasting stainless steel.

6. Applicable scenarios: Urban solid waste plastic sorting, electronic waste treatment,Mixed waste plastic recycling line, agricultural and packaging waste treatment, etc. ‌

7. Technical Support:

(1) Simple structure and stable operation: The gravity difference sorting machine is mainly composed of a vibrating screen body, a fan, a sorting mechanism, etc,It has no complex transmission system and a low failure rate.

(2) Energy-saving and environmentally friendly: It does not rely on chemical agents.Mainly relying on the action of physical force fields, it has low pollution and energy consumption.

(3) High processing capacity: capable of continuous operation.Suitable for materials with a particle size of 0.5-100mm,The processing capacity can reach several tons per hour.

(4) High sorting accuracy: Combining frequency conversion speed regulation and angle adjustment,Accurately control the residence time and layering effect of materials,Improve the recycling rate.

(5) Easy maintenance: Small size and high space utilization.Easy to clean up,It can effectively reduce manual labor.

 Routine Maintenance of Industrial Grinding Machines:

1. Before each startup, check whether all parts are loose.Simultaneously observe the operating status of the equipment,Pay attention to any abnormal vibrations, impact sounds, or noises.Once discovered, the machine should be immediately shut down for troubleshooting.

2. After completing each assignment,It is necessary to ensure that all materials inside the machine are completely discharged.Avoid residual blockage.

3.When the gravity difference sorting machine is not in use for a long time,All remaining materials inside should be thoroughly removed.Keep dry to prevent corrosion or clumping.

4. The operation must be carried out strictly in accordance with the instructions or the demonstration requirements of after-sales personnel.It is not allowed to modify the machine or change the usage steps without authorization.
