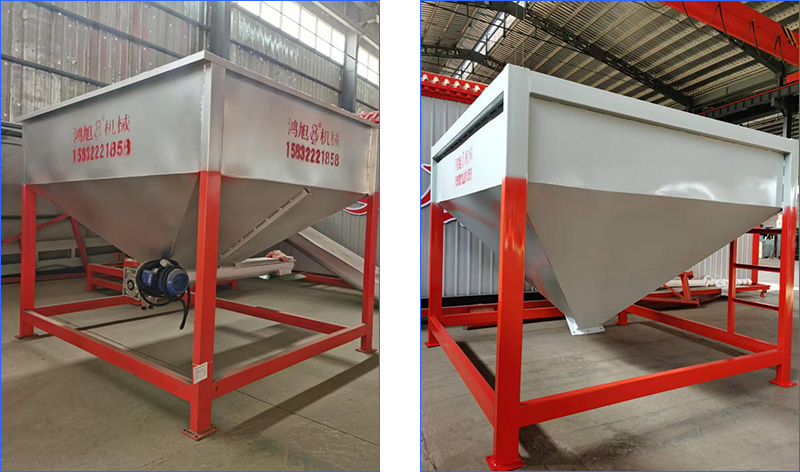

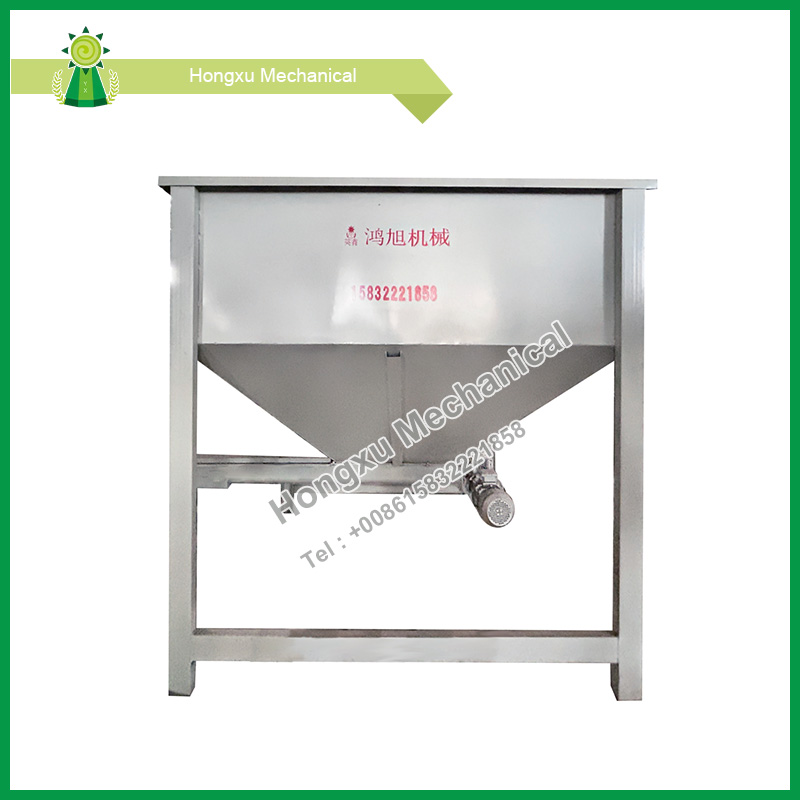

Hopper Conveyor

1. Precise material transfer: The hopper conveyor stably lifts the crushed material from a low position to the high-level feed inlet of cleaning and sorting equipment, Adapt to different workshop layouts.

2. Low-loss transport protection: A closed conveyor channel is adopted, Significantly reduces material loss during transportation, At the same time, reduce the overflow of lightweight material dust.

3. Precise matching of production capacity: Supports variable frequency speed control, Adjust the conveying volume flexibly, Match the feeding rhythm to different production capacities, Avoid material blockage or material shortage.

4. Multi-workstation adaptation: Supports single-point feeding and single-point discharging, Multi-point unloading structures can also be customized, Simultaneously supplying materials to multiple devices, Simplify production line layout.

Standard parameters:

Note: Reference capacity is based on aluminum scrap. Actual throughput may vary depending on material type, bulk density, particle size, moisture content and feeding conditions..

Operating principle:

1. Material caching stage: The hopper conveyor buffers the crushed material into the hopper, The material is fed by a bottom spiral feeder, Smoothly transport materials.

2. Sealing and Lifting Stage: The material is conveyed smoothly along the preset track, The fully enclosed conveyor channel significantly reduces the spillage of light dust, Precise unloading after reaching the designated height.

Material selection:

1.Stainless steel 201: The contact surface can be polished for easier cleaning and reduced contamination risk.

2.2. Carbon steel Q235: Impact resistant, non-stick, The body can be thickened. Suitable for general sorting scenarios of ordinary waste plastics and plastics from dismantling household appliances.

Core advantages:

1. Precisely match production capacity: Hopper conveyors can buffer materials, Flexible matching of different production capacity requirements, Avoid material blockage or material shortage.

2. Reduced material loss during conveying: The enclosed conveying channel helps reduce spillage of lightweight materials and dust during transfer.

3. Strong scene adaptability: Various structures can be customized, Achieving flexible transfer within a limited workshop space, No additional transfer equipment required.

4. Easy Maintenance: The modular structure provides convenient access to wear components, making routine maintenance and replacement easier.

Hongxu Machinery promises:

1.Each hopper conveyor is inspected and tested before shipment to verify key operating functions and assembly quality.

2. After receiving the equipment,Hongxu Machinery will provide free guidance on equipment installation.

3. Excluding human error, Quality issues occurring within one year, Free repair or replacement.
