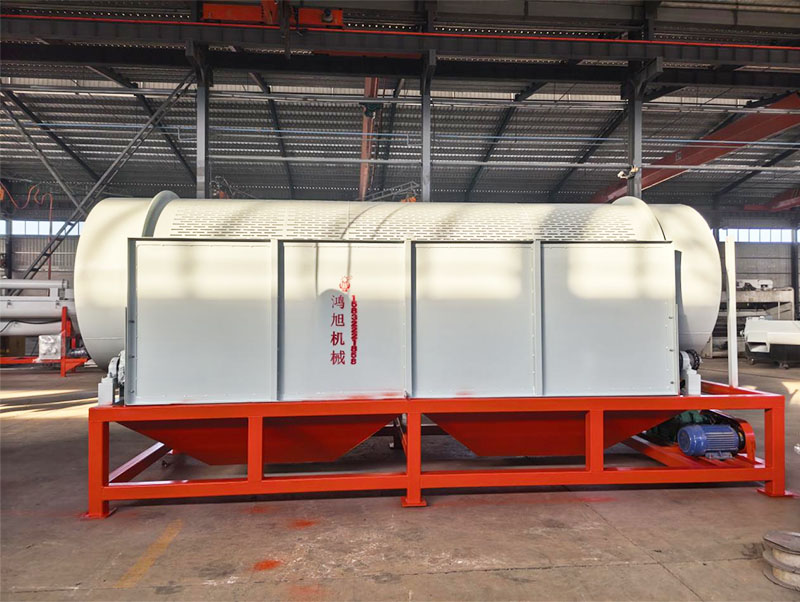

Horizontal Rotary Screening Machine

1. Function and purpose:Horizontal rotary screening machines are mainly used for coarse screening and grading of mixed waste according to particle size,Improve the efficiency of subsequent fine sorting.

2. Standard models: 1200 mm × 3000 mm, 1500 mm × 4000 mm.

3. Power: 4-5.5 kW.

4. Output: 1-10 t/h.

5. Equipment Material:The main body is made of stainless steel,Hard and wear-resistan,Long service life.

6.Applicable Scenarios:Widely used in household waste recycling,Construction and renovation waste recycling,Plastic recycling,Industrial scrap recycling,

Agriculture and food processing, among other things.

7. Features and advantages:

(1) Simple structure and stable operation:The Horizontal rotary screening machine adopts a double roller bottom support design,Two rollers are placed flat at the bottom of the front and back of the roller，During operation, the rollers and wheels move relative to each other，The close contact between the two sides ensures smooth operation of the drum，Low vibration and low noise.

(2) Non-clogging and has strong self-cleaning ability:Rolling conveyor principle,The entire process is dynamic and rolling,In conjunction with the internal screen cleaning device,Effectively prevents sieve hole clogging.

(3) Physical sorting, without damaging materials:Physical sorting throughout the entire process，No chemical agents added，It does not affect the quality of the materials.

(4) High degree of automation:No manual labor required,It can be adapted to conveyor belts to complete continuous operations.

(5) Strong customization capabilities:Horizontal rotary screening machines can be customized in terms of screen aperture size and screen material according to different material characteristics (such as particle size and moisture content).

Routine Maintenance:

1. Daily inspection and cleaning:Check the equipment daily for any abnormal noise, vibration, or leakage,Clean the residue on the screen surface to prevent blockage from affecting the screening effect.

2. Regular lubrication and fastening:Regularly add lubricating oil to moving parts such as bearings, chains, and gears,Check the tension of the belt and whether the screw connection is loose,Timely adjustment.

3. Monitoring and replacement of vulnerable parts:Regularly check whether the screen mesh is damaged or deformed,If any damage is found, replace it promptly,Establish spare parts inventory for screens, blades, conveyor belts, etc,Reduce downtime.

4. Deep maintenance:Avoid strong acid and alkali corrosion of plastic materials in daily life,Regularly inspect plastic components for signs of brittleness and cracking,Pay special attention to the stress areas at the corners.

5. Electrical system maintenance:Regularly check the safety of the motor circuit and plug switch of the horizontal rotary screening machine,Prevent accidents caused by aging.
