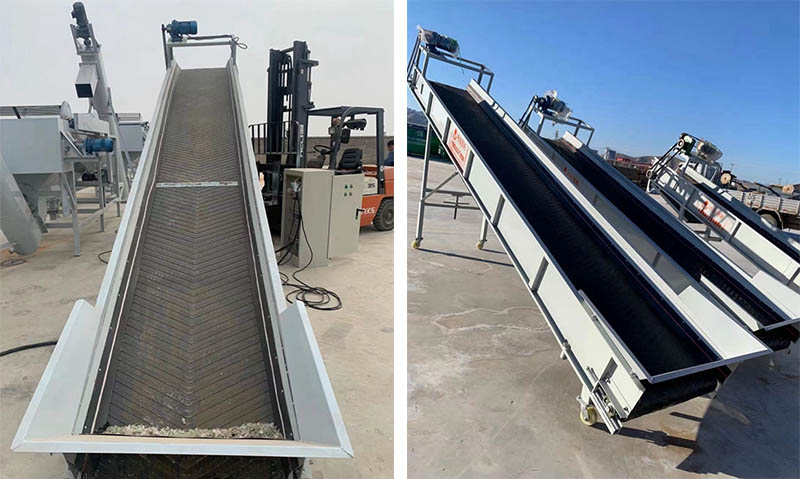

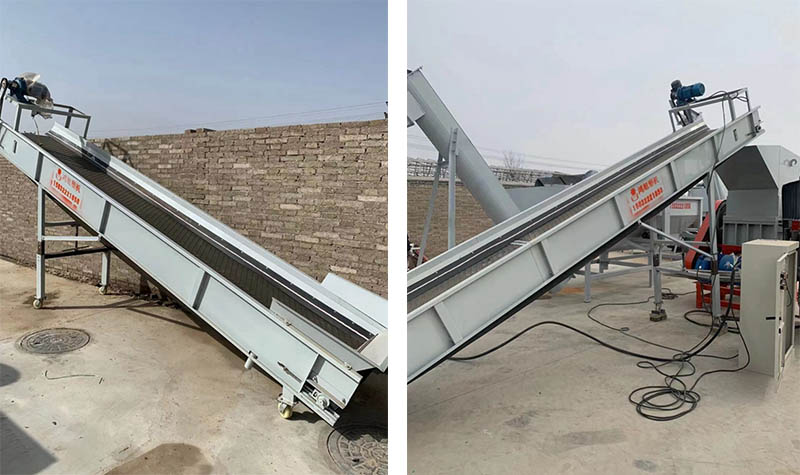

Inclined Conveyor

Details:

1. Technical Parameters: The motor power range of inclined conveyors is generally 1.5-3 kW, and the output range is generally 1-5 t/h. The product significantly improves work efficiency; in the same time period, using a conveyor belt can increase efficiency by about 30% compared to manual transport, greatly reducing labor input and lowering operating costs.

2. Application Scenarios: The product has diverse application scenarios and is widely used in various industrial fields, mainly conveying granular, powdery, and small lump materials, as well as bagged materials such as crushed stone, fertilizer, and coal.

3. Compatibility: The product has a wide range of applications and strong compatibility, and can be used with various industrial equipment, such as vibrating screens, gravity separators, and silos. It has high synergy capabilities both before and after operation.

Product Advantages:

The industry currently faces several pain points: unstable baffles are prone to cracking, belts are prone to deviation at high speeds, and the surface is prone to cracking and aging. To address these industry pain points, we implemented point-to-point quality improvements for inclined conveyors.

1. Baffle Strength: Utilizing an integrated molding process, the scientifically designed form is robust and stable, improving overall strength by approximately 50% compared to cold-bonding processes.

2. Operational Stability: Precise dimensional control and anti-deviation design effectively prevent belt slippage.

3. Belt Durability: The addition of inert polymer materials allows for long-term resistance to chemical components, extending belt life by over 30% compared to ordinary materials.

In addition, inclined conveyors offer numerous other advantages.

1. Long conveying distance, up to 20 meters to meet different customer needs.

2. Easy to move, adjustable lifting, and convenient maintenance.

3. Powerful driving force, strong load-bearing capacity, and large conveying capacity.

4. Fully customizable according to user requirements.

Maintenance:

1. Regularly check whether the idler rollers and drums rotate freely and whether there is oil or wear on the surface.

2. Regularly check whether the frame and guide rails are deformed to avoid deviation due to structural tilt.

3. Regularly lubricate the bearings, adding lubricating oil as per the instruction manual to prevent dry friction damage.

4. Overloading and overspeeding are strictly prohibited for inclined conveyors. Waterproof covers should be installed in environments with water spray. Sun protection is required in high-temperature summers.
