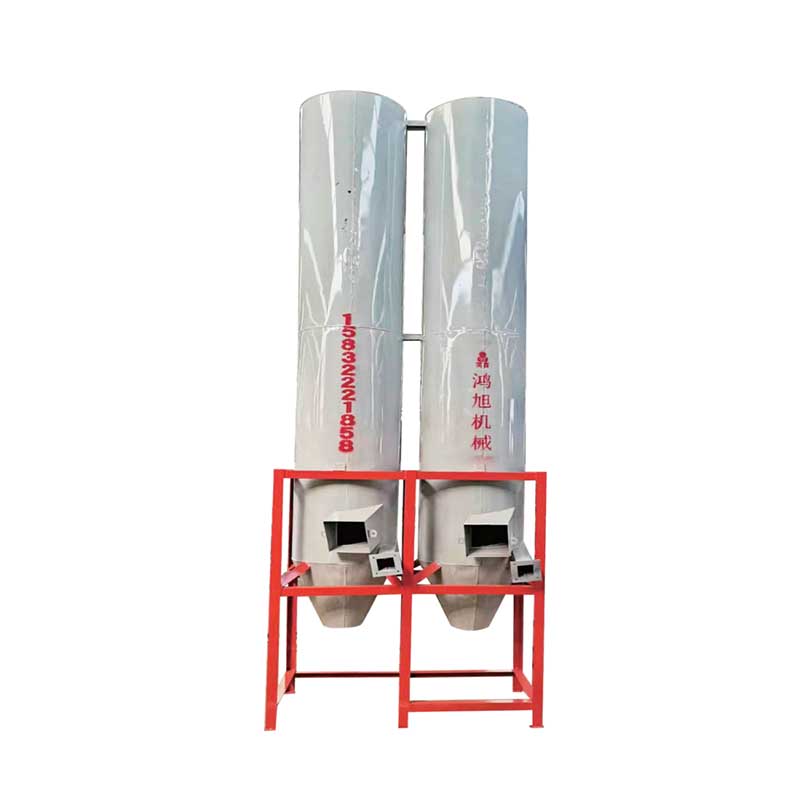

Lightweight Plastic Air Classifier

1. Core Functions:Lightweight plastic air classifiers are based on aerodynamic principles.Utilizing the differences in density, weight, and suspension velocity between materials.It can separate low-density, lightweight materials (such as paper and labels) from high-density plastic debris.

2. Standard parameters:

Model:Single-tube(Standard),double-tube(High-capacity),triple-tube(Multi-stage high-purity sorting).

Power: 4.4-7.5 kW(Total power).

Output: 1-5 t/h(Based on material properties and quality control).

3. Technological advantages:

High sorting efficiency:The lightweight plastic air classifier has a processing capacity of 1-5 tons per hour.The sorting efficiency can reach over 95%.Significantly improves the efficiency of plastic recycling.

High sorting accuracy:Materials of different densities can be accurately separated by adjusting airflow parameters.It can effectively control the impurity content of plastic output.Purity level is over 98%.

Flexible adaptability:The airflow speed can be precisely adjusted from 3-20 m/s.The structure can be customized according to the scenario.It can process various types of plastics, including plastic film, foam, and plastic sheet.It can be adapted to processing projects of different sizes.

 Good environmental performance:Using a purely physical sorting method,No chemical agents need to be added.The sorting channel has good sealing properties.Minimize dust emissions to the greatest extent possible.

 Low economic cost:High degree of automation,It can reduce reliance on manual labor.Significantly reduce labor costs,The equipment is easy to operate.Low maintenance cost,Low energy consumption,It offers excellent cost-effectiveness over long-term operation.

 Industry Comparison:

Comparison dimensions of lightweight plastic air classifiers	Hongxu Machinery	Commonly used in the market
Core sorting principle	Customized parameter ratios are formulated based on the properties of plastics.The airflow speed can be precisely adjusted from 3-20 m/s.Precise separation of various lightweight objects	General airflow effect，Focusing on coarse separation of light and heavy materials,No specific parameter optimization for plastics
Sorting accuracy	The minimum purity of the sorted material can reach 95%.Low residual rate of lightweight impurities in plastics	Conventional sorting purity is 84-88%.The impurity entrainment rate is high when sorting plastic materials.
Typical processing capacity	Customized models have a processing capacity of 30-150 m³/h.High production capacity	Processing capacity 9-60m³/h.Low production capacity
Environmental protection and energy consumption	Closed airflow channel,Reduce dust leakage.Motor power ranges from 4.4-7.5kW.Lower energy consumption,No secondary pollution	Conventional models have a high risk of dust leakage.The maximum motor power is 37kW.Overall energy consumption is relatively high.

 Frequently Asked Questions:

1. Can this lightweight plastic air classifier separate metal materials from a plastic-metal mixture?

A: In general, weight-based sorting may not be fully effective here, since plastics and metals can have identical weights and often exit through the same discharge point. For reliable metal sorting, implementing an eddy current separator or a stainless steel separator would be highly recommended.

2. Does this machine support customization?

A: Yes, we fully support personalized customization.We can modify and upgrade the equipment according to actual needs.
