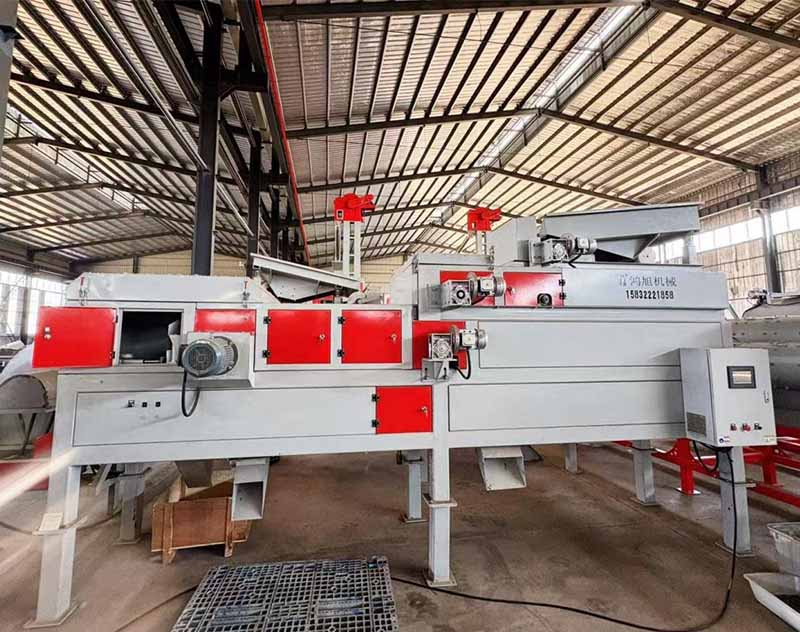

Multifunctional Eddy Current Separator

1.Working Principle: The multifunctional eddy current separator utilizes a high-speed rotating permanent magnet drum to generate an alternating magnetic field. This induces eddy currents within conductive metals—such as stainless steel, copper, and aluminum—creating a repulsive force that causes them to be ejected and separated. Non-metallic materials such as plastics directly fall naturally without induction, thus realizing accurate separation.

2.Application Areas: Automotive dismantling waste, electronic waste, discarded home appliances, industrial waste, lithium battery recycling, copper smelting slag, etc.

Product Advantages:

1.Multi-functional: The multifunctional eddy current separator integrates stainless steel sorting with eddy current aluminum-plastic separation into a single pass, enabling the simultaneous removal of ferrous metals, stainless steel, aluminum, copper, and plastics from mixed waste streams.

2.Intelligent operation: the equipment is equipped with PLC control system, and key parameters-such as rotor speed, belt speed and deflector position can be adjusted electrically through touch screen interface. This intelligent design minimizes operator fatigue.

3.Water cooling system: Built-in water circulation cooling system continuously radiates heat generated by high-speed magnetic rollers. This can prevent overheating, ensure stable performance during long-term operation and prolong the service life of the equipment.

4. The multifunctional eddy current separator employs 100% dry physical separation, requiring no water or chemicals, and generating zero pollution.

5. High Sorting Efficiency: Achieves over 98%.

Equipment Maintenance and Upkeep

1. The equipment shall be dusted regularly; Internal components and external surfaces should be cleaned by high-pressure air flow or brush to prevent dirt, dust and other sundries from being sucked into the conveyor belt and magnetic roller, thus causing failure.

2. During operation, check whether the connecting bolts are loose regularly; If the bolt is found loose, it must be tightened immediately.

3. When the multifunctional eddy current separator is not used for a long time, it should be stored in a dry and ventilated place.

4. If the equipment detects any abnormal sound during use, it must stop running immediately to check whether there is abnormality or damage to all components; Once the damage is found, the damaged parts should be replaced in time.

5. Wear-prone parts (especially conveyor belts) should be monitored frequently. Once signs of wear are found, they should be replaced immediately to avoid interrupting the operation.
