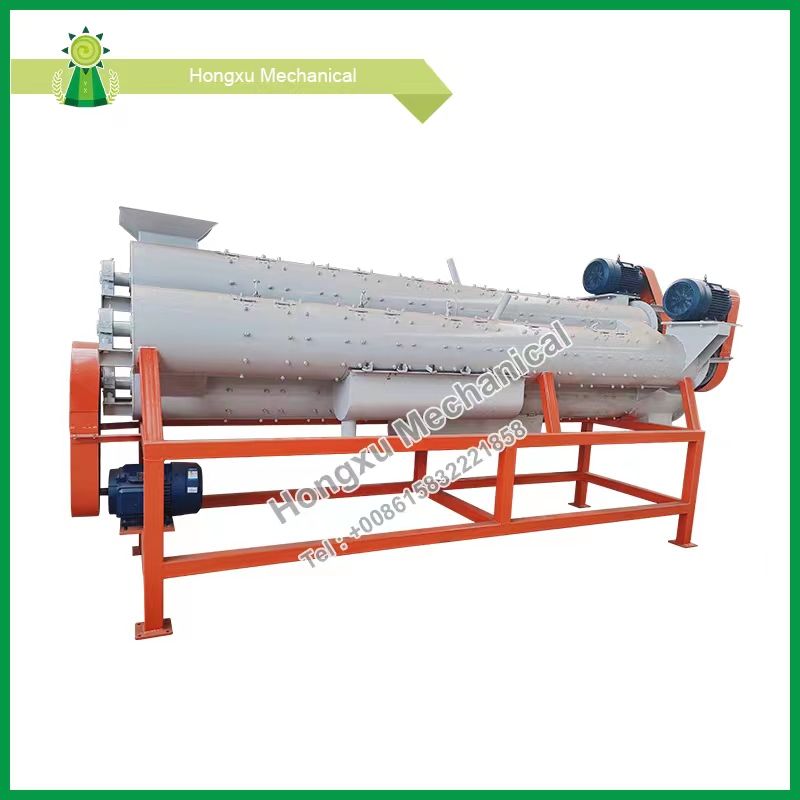

Plastic Friction Cleaning Machine
  • Plastic Friction Cleaning MachinePlastic Friction Cleaning Machine

Plastic Friction Cleaning Machine

The Hongxu's high quality Plastic Friction Cleaning Machine is a common cleaning equipment that removes sludge, sand, oil, etc. from plastics by vigorously rubbing and scrubbing materials. Usually used in processing, manufacturing, grinding, cutting and other industrial fields. Friction machines have the advantages of high efficiency, safety, environmental protection, simple use, and convenient maintenance.

Send Inquiry

Product Description


Application areas of friction machines

Friction machines can be divided into two types: dry friction and liquid friction. Dry friction refers to friction between two objects without lubricant. This form of friction usually produces high friction and heat energy and is often used in Grinding and cutting areas. Liquid friction refers to the friction between two objects with lubricant. This method produces lower friction and heat energy and is often used in processing and manufacturing fields. The friction machine is also suitable for cleaning various plastic products, including plastic toys, plastic tableware, plastic containers, etc.

Working principle of friction machine

When the main shaft of the friction machine rotates at high speed, the materials and materials, and the materials and the powerful washboard rub against each other, so that the materials and dirt, and materials and impurities can be effectively separated to achieve the purpose of cleaning. The dirt is discharged through the screen and through the drain outlet with water; The material dialing plate is arranged in a spiral line on the main shaft, so that the material can spirally travel to the discharge port in the equipment; there are many water spray holes arranged on the main shaft, and water with a certain pressure is driven into the inner cavity of the main shaft from the rotating joint. When the main shaft rotates at high speed to drive the materials along the screen along the spiral line, the materials in the screen can be flushed in all directions and without omission, greatly improving the material cleaning effect.

Advantages of friction machine

(1) Efficient cleaning
The friction between materials and materials, and between materials and powerful washboards in the friction machine produces high friction, which can quickly remove stains and impurities.

(2) Safety and environmental protection
There is no need to use chemical cleaners during the working process of the friction machine, which can reduce environmental pollution.

(3) Variable frequency control
The friction machine adopts a variable frequency speed regulation system, using a frequency converter to control the motor so that the motor runs at the required speed, with smooth speed regulation, energy saving and environmental protection.

(4) Simple operation
The friction machine adopts a master control power distribution cabinet, and multiple control buttons realize intelligent control. Just put the materials evenly into the equipment, and the friction cleaning can be completed automatically. The operation is simple and saves labor costs.

(5) Adopt modular design
The friction machine is equipped with multiple observation doors, which can be opened at any time to check the operating status of the equipment to facilitate troubleshooting and maintenance.

(6) Strong and durable
The friction machine uses thickened square tubes as a whole, making the equipment more stable, less prone to deformation, and more durable.

(7) Equipment has long service life
The bearings are from international first-line brands, and the motors and reducers are from mainstream Chinese brands. High-quality bearings, motors, reducers, etc. can extend the service life of the equipment, ensure stable operation of the equipment, and save energy costs.

(8) Enlarge heavy-duty bearing seat
The bearing seat is made of enlarged heavy-duty cast steel, and its service life is twice that of ordinary bearing seats, which can effectively reduce maintenance costs.

Since there are many models of friction machines, in order to better provide customers with professional technical services, our company can provide corresponding model recommendations according to the different needs of customers.

Plastic Friction Cleaning Machine Specification
Product model Production per hour (tons) Power (KW) Body size (mm)
426*5m single-axis friction machine 1.5tons 15KW 4950mm*1200mm*2300mm
426*5m three-axis friction machine 1.5tons 45KW 4950mm*1100mm*1850mm

If you purchase a friction machine, we will provide a full range of technical support and services to make your use worry-free. The following accessories are also included: host, motor, frequency conversion control cabinet, friction tiles, friction rods, upper and lower spouts, and belts. Wheels, V-belts, elevated legs, operation videos, etc.

After-sales service

(1) During the warranty period: From the date of product acceptance, warranty services will be provided in strict accordance with the warranty period promised in the contract signed by both parties. The hardware warranty does not include equipment damage caused by man-made or force majeure factors (natural disasters, earthquakes, lightning strikes, insect disasters, etc.). The company will provide paid service commitments at the lowest cost price.
(2) Outside the warranty period: Provide lifelong maintenance and service commitments. After the expiration of the warranty period, if the equipment is damaged by customer operators, we are guaranteed to provide accessories and services at the best prices, and only charge appropriate cost fees, labor fees and travel expenses. .
(3) If the equipment fails during use, whether during the warranty period or after the expiration of the warranty period, we will immediately make a substantial response to the user and propose a solution.
(4) From the day the equipment passes the acceptance inspection, the technical department will establish customer after-sales service files and provide customers with long-term technical consultation and quality assurance tracking services. During the warranty period and after the expiration of the warranty period, we will conduct regular telephone return visits and quality tracking visits, keep records of return visits, and provide timely feedback.
(5) The company provides free technical training, technical guidance, daily maintenance training and other services for customer operators until the operators can skillfully use the equipment.
(6) Conduct equipment experiments for customers’ new materials free of charge
