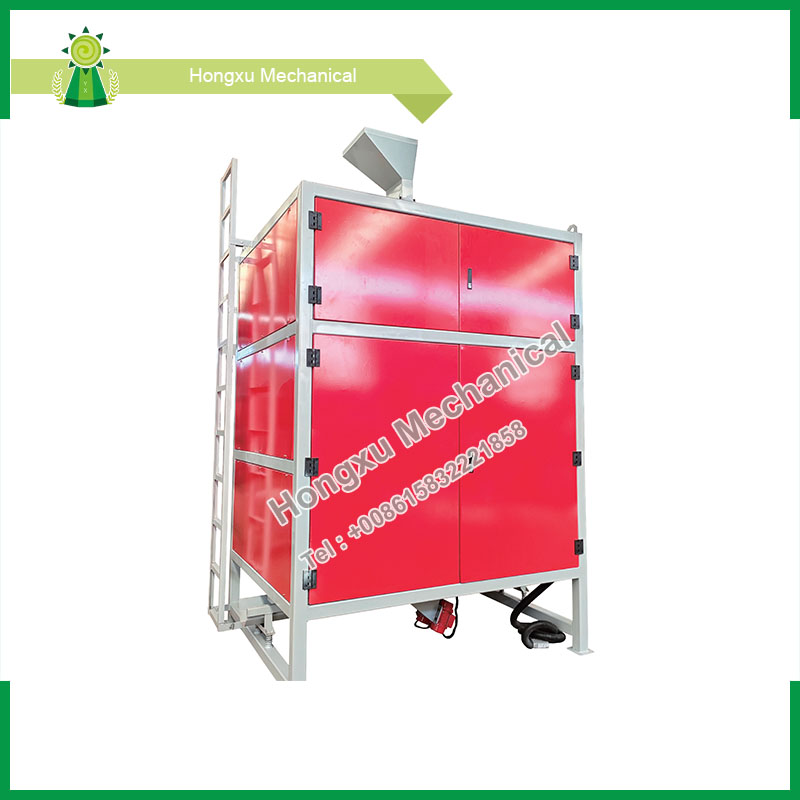

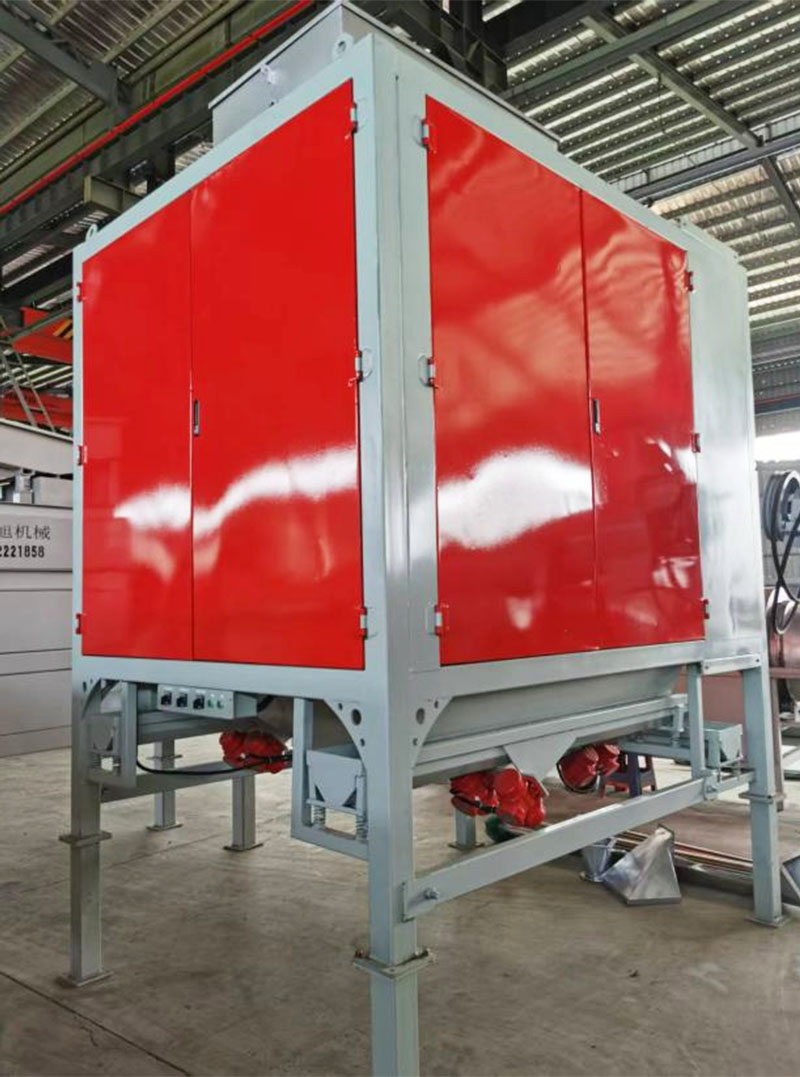

Silicone Rubber Integrated Sorting Machine

1.Core Functions: The Silicone rubber integrated sorting machine separates flexible materials according to differences in elasticity, friction, and material characteristics. For example: rubber, silicone, sponge, wood chips, leather, etc. The fully automated sorting system reduces the need for manual sorting and improves production efficiency， reducing labor costs and improving sorting accuracy, Enhancing the economic value of recycled materials.

2.Product Specifications:

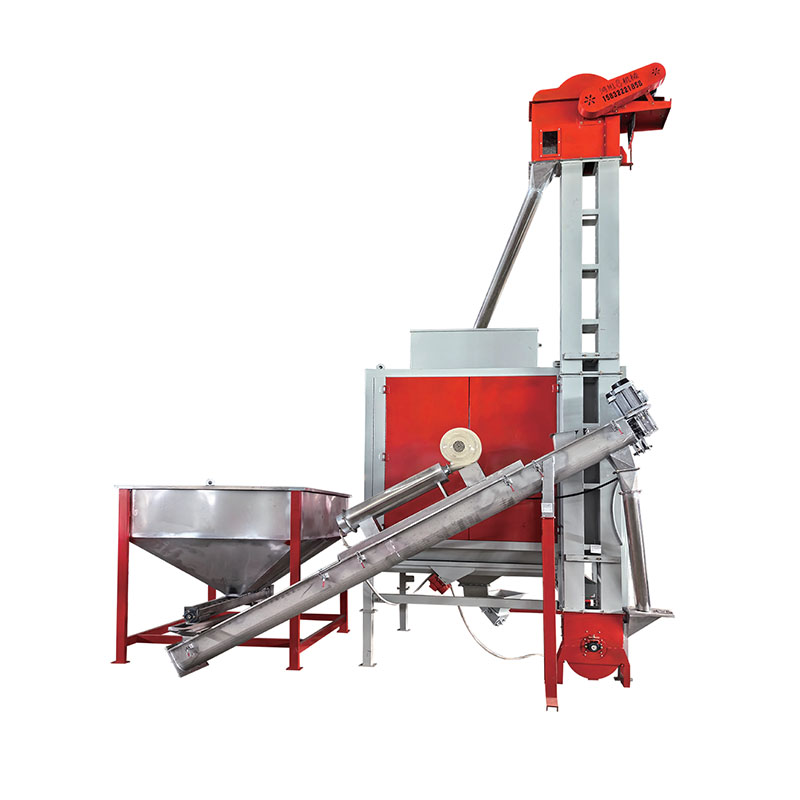

3.Working principle: Materials are transported to the distributor through a vertical elevator, The distributor ensures stable feeding by buffering and temporarily storing materials, The material is then moved to the vibrating hopper, The vibrating feeding hopper serves to feed materials at a uniform speed, The material then falls onto a motor-driven rotating drum, Materials with different elasticity and friction will have different trajectories after impacting the roller, Finally, Different materials are discharged through separate outlets. This completes the entire sorting process.

4.Equipment Material: The feeder, vibrating hopper, and rollers of the silicone rubber integrated sorting machine are made of 201 stainless steel, Its strength is stable at room temperature, 201 stainless steel 201 stainless steel is selected for components requiring durability and corrosion resistance under normal operating conditions. and durability for long-term operation; The fuselage is made of Q235 carbon structural steel, Q235 carbon steel provides strong structural support and stable operation, It is not easily deformed or damaged with long-term use, At the same time, the fuselage undergoes a paint protection process, Greatly improves rust resistance. Longer service life.

5.Application areas: The silicone rubber integrated sorting machine is mainly suitable for materials with high elasticity and friction, such as rubber, sponge, wood chips, silicone, and leather. Materials with different elasticity characteristics can be effectively separated, Widely used in waste household appliances, household waste, automobile shells, electronic waste, medical waste and other fields.

6.Technical Features:

Pure physical sorting: The equipment utilizes a purely physical sorting mechanism, No need to rely on water sources or chemical agents, The machine does not require water washing or chemical agents, helping reduce wastewater generation and operating costs, It can adapt to most working environments, It reduces water consumption, chemical usage, and operating costs.

High separation purity: The separation purity can reach up to 99% under suitable operating conditions, The purity of the sorting can be guaranteed without multiple rounds of sorting.

Long service life: The equipment is manufactured using a combination of 201 stainless steel and Q235 carbon steel, Combined with stainless steel components and protective coating, the machine provides long service life.

 Precautions and After-sales Service:

1. Use of the silicone rubber integrated sorting machine, The materials need to be clean and dry, It also meets the applicable particle size range of 3-30mm, 10-20mm is better, Combined with uniform feeding, Complete the assignment.

2. Equipment maintenance must be carried out strictly in accordance with the instruction manual,diagrams, or guidance videos, Ensure safe operation.

3. For failures caused by equipment quality issues rather than improper operation, we provide a one-year warranty. If a quality abnormality occurs,Please contact after-sales personnel promptly, We will provide a solution within 24 hours of receiving the message.
