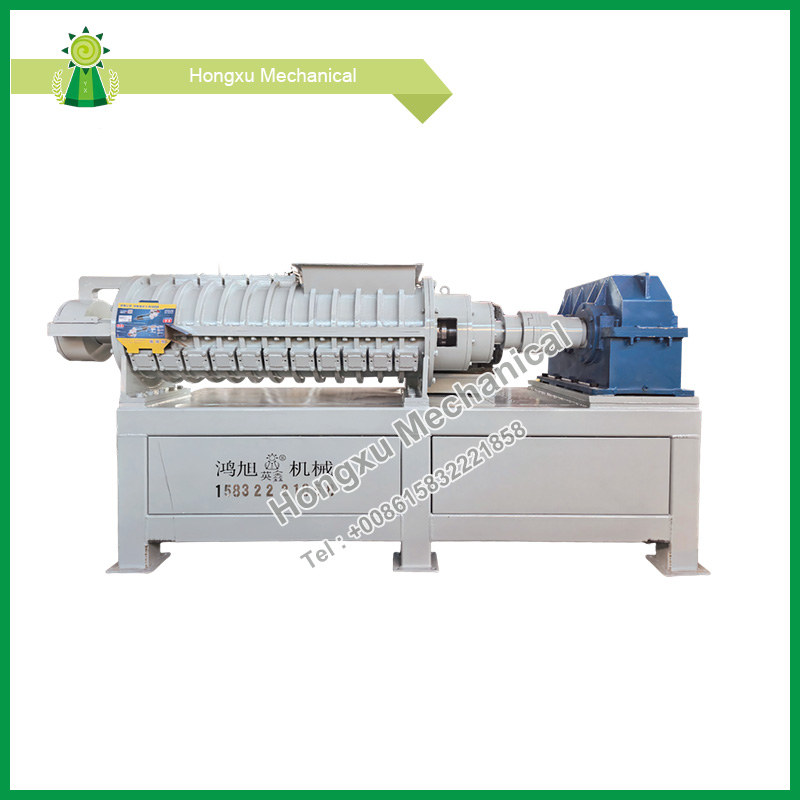

Spiral Soft Plastic Crusher

Spiral soft plastic crusher is a specialized pre-treatment equipment designed for soft and easily entangled materials in the plastic sorting industry, launched by China Hongxu Machinery. It can cut large volume soft plastics into uniform small pieces, The advantage is that it does not entangle the knife or block the material, Stable operation.

Send Inquiry

Product Description

Main functions: The core function of the Spiral soft plastic crusher is to use a low-speed, high torque spiral shear structure, Perform cutting and crushing operations on materials entering the equipment chamber, Meet the dimensional requirements of the subsequent processing flow.

Working Principle:

1. The equipment adopts a low-speed, high torque spiral blade roller structure, The motor power is transmitted to the spiral spindle through a heavy-duty reducer, After the material enters from the feeding port, The blades arranged in a spiral gradually roll into the crushing chamber, Continuously moving forward by relying on the spiral pushing force.

3. The moving blade forms a precise cutting gap with the fixed blade inside the cavity, Repeatedly tear, squeeze, and cut the material in multiple dimensions.

Common specifications:

Model number	Diameter 400mm	Diameter 550mm
Power	55 kW	132 kW
per hour production capacity	2-4 tons	4-6 tons

Spiral crusher material:

1. The material of the fixed and moving knives is M6V, Can make the tool last longer.

2. The spindle material is 40 chromium, Not easily deformable.

3. Other components and the body are made of carbon steel.

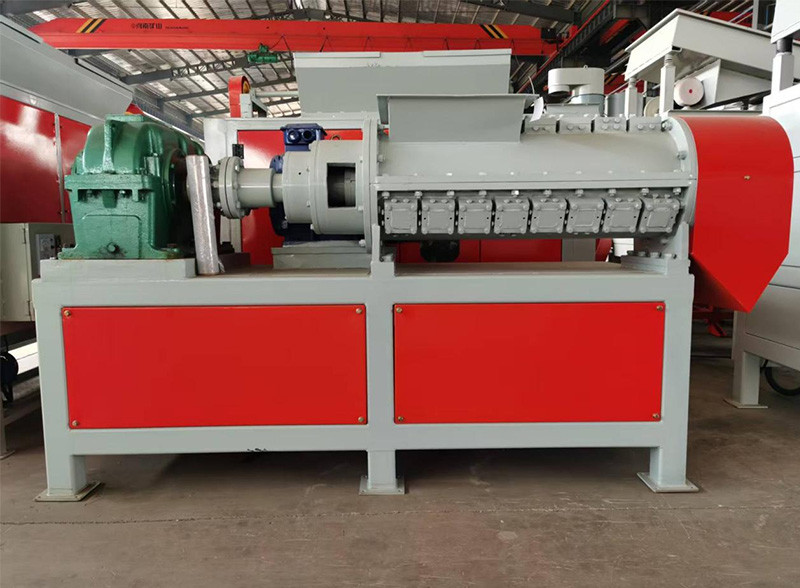

Spiral Soft Plastic Crusher

Equipment features:

1. Low noise: The Spiral soft plastic crusher adopts low-speed cutting, The operating noise should be controlled within 80 decibels, Effectively reduce noise pollution.

2. Strong anti entanglement ability: The special arrangement design of the spiral hook knife, Can actively hook and pull easily tangled materials such as films and woven bags, Prevent spindle winding faults from the root cause.

3. Modular and easy to maintain: The cavity adopts a quick detachable structure, Quickly replace blades without disassembling the spindle, Reduce replacement time consumption.

Application industry:

1. Plastic recycling and sorting industry: As the front-end coarse crushing core equipment for PE film and PP woven bag recycling line.

2. Packaging materials industry: Handle packaging film, bubble wrap, and leftover materials from courier bags generated during the production process.

3. Agricultural environmental protection industry: Recycling waste agricultural film, mulching film, plastic packaging for agricultural inputs, etc.

4. Textile and renewable resources industry: Dealing with soft mixed waste such as synthetic fiber waste, waste fabrics, and ton bags.

Key points of structure and maintenance:

1. The main vulnerable parts are cutting tools, Daily maintenance requires regular inspection of the cutting tools for any abnormalities, Avoid increasing maintenance costs.

2. Special attention should be paid, To ensure that the processed materials do not contain hard objects, Pre processing needs to be done in advance, Avoid tool wear and tear.

Hongxu Machinery promises:

1. After receiving the equipment, Hongxu Machinery will provide free guidance on equipment installation.

2. Excluding human error, Quality issues occurring within one year, Free repair or replacement.

Engineered for flexible plastic waste reduction, the spiral soft plastic crusher features spiral cutting design for uniform output and durable performance. Simplify your plastic recycling workflow and boost your material reclamation efficiency with our dependable crushing solution.
