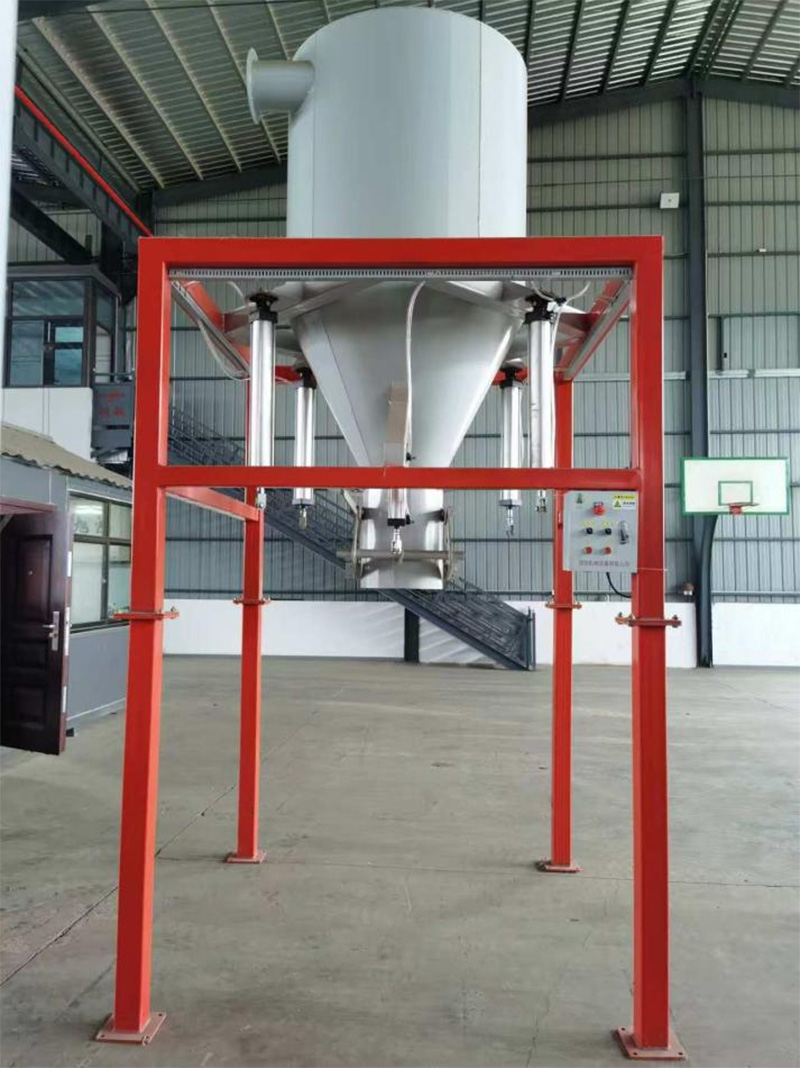

Vertical Ton Packaging Machine

1. Function and purpose:The Vertical ton packaging machine is an automated weighing and packing equipment,It integrates weighing, filling, bag removal, and conveying.Suitable for powders, granules, and lumps,In the plastic sorting and recycling industry, it mainly functions to sort,

clean, and dry plastic granules or recycled materials.

2. Equipment Material:The main body is made of stainless steel,Corrosion and abrasion resistant,Long service life.

3. Standard models:φ1.5m、φ1.8m、φ1.9m。

4. Power: 1.5-15 kW.

5. Output: 1-2 t/bag, 5-30 bags/h.

6. Features and advantages:

(1) Precise measurement:The Vertical ton packaging machine uses a high-sensitivity weighing

module and an intelligent drop compensation algorithm,Through high-precision weighing

control,Dynamic measurement accuracy can reach ±0.2%~±0.5%,Ensure that the weight of each bag of material is consistent,while standardizing production,It meets the needs of warehousing, transportation and trade settlement.

(2) Stable and reliable:The entire machine adopts a steel frame design,The structure is scientific and reasonable,The material is hard,Low failure rate,Easy to manage and maintain.

(3) Fully automated packaging process:It integrates functions such as automatic bag clamping, fast and slow feeding, automatic bag unloading, sealing and conveying, etc,Except for manual bag hanging, the entire process is automated,A single machine can pack bags in 2-3 minutes,Significantly improves production efficiency.

(4) High adaptability: Vertical ton packaging machines can be used in conjunction with conveyor belts, material handling machines, and other equipment.The product also supports customized design，Flexible to meet the needs of various enterprises.

III. Routine Maintenance:

1. Daily cleaning management:After each shift ends,Clean up any residual materials, dust, and debris from the surface and interior of the equipment promptly,Focus on cleaning areas such as the material discharge port,To prevent material buildup that could cause mechanical jamming and other problems.

2. Regular lubrication and maintenance:The chain of the Vertical ton packaging machine should be inspected regularly,Lubricate bearings and other moving parts,To prevent chain breakage,Issues such as bearing jamming.

3. Electrical and control system maintenance:Regularly check whether the wiring terminals are loose,Clean the dust from the control cabinet.Non-professionals are not allowed to adjust the wiring at will.

4. Safe operating procedures:Operators must be trained before starting work.When a machine malfunctions and shuts down, the power supply must be disconnected and a warning sign must be posted,Ensure maintenance safety.
