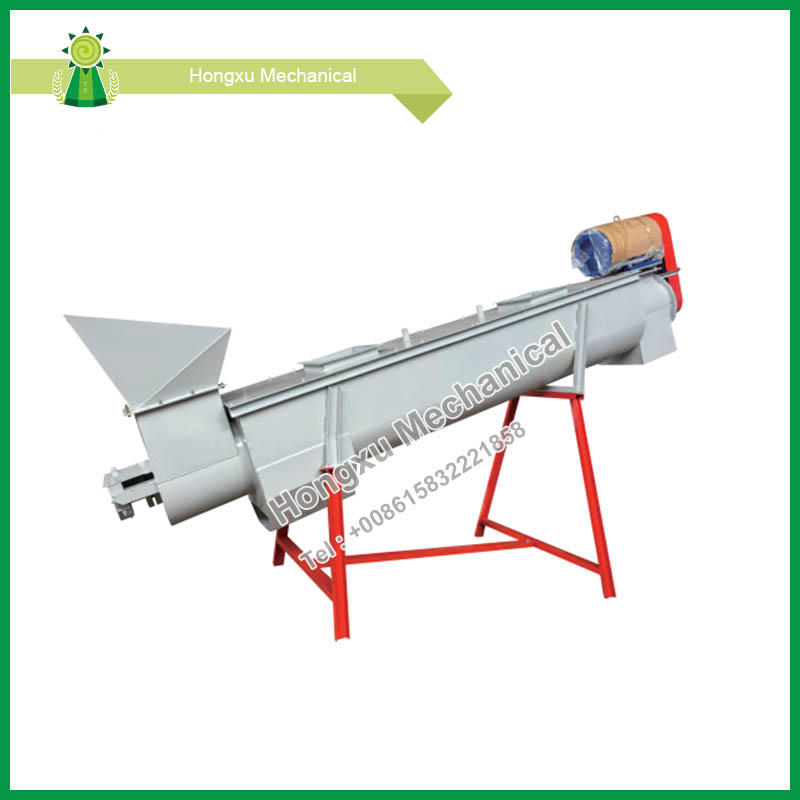

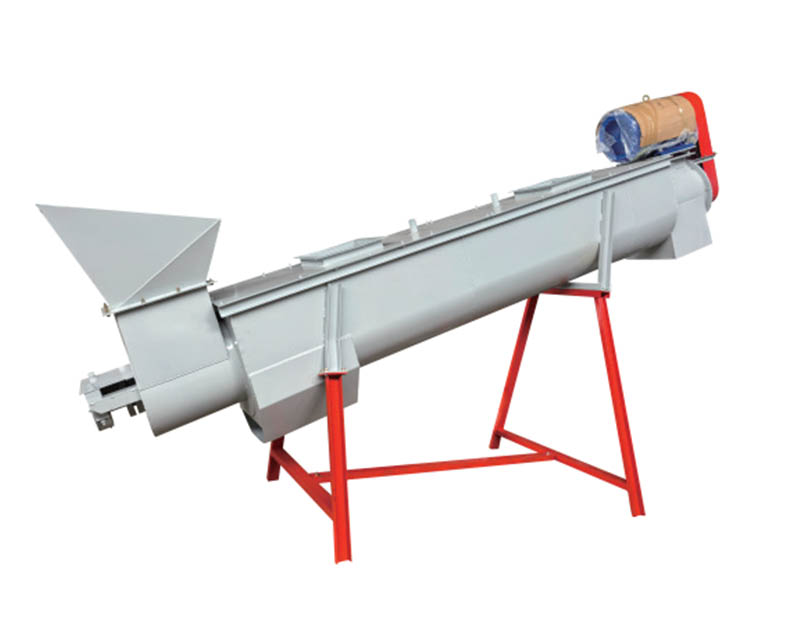

Plastic Water Washing Friction Machine

1. Core Functions:The Plastic water washing friction machine works by rubbing materials at high speed(The speed range is 1200-1800rpm).Combined with water washing,It powerfully removes various impurities such as oil, mud, adhesives, and pulp from the surface of materials.To provide clean raw materials for subsequent sorting and processing.

2. Working principle:

(1) After the material enters the equipment cavity from the feed inlet,Relying on the high-speed rotation of the blades inside the machine body,This causes intense kneading and friction between materials and between materials and blades(The material is made of wear-resistant steel 304,Sturdy structure, stable and reliable during high-speed operation);

(2) Continuous water intake in coordination with the inlet,Combined with water rinsing,Achieve impurity separation.Finally, clean plastic sheets are obtained.

3. Standard parameters:

(1) Model: Single-shaft, three-shaft.

(2) Power: 15-45 kW.

(3) Output: 1-3 t/h.

4. Technological advantages:

(1) Highly professional:Plastic water washing friction machine is specifically designed for cleaning soft materials.It can be used in conjunction with a high speed dry cleaning friction machine.It provides a better cleaning effect.

(2) Obvious stain removal:The equipment combines water washing during the friction process with the material.Dual cleaning methods.Compared to ordinary friction machines on the market,The stain removal ability is improved by 80%.

(3) High adaptability:The product supports customization.Different specifications can be customized according to requirements.A complete plastic recycling and cleaning production line can also be customized.Meet the needs of enterprises of different scales, large, medium, small, and micro.

Maintenance and Care Recommendations:

1. Regularly tighten the connectors:The Plastic water washing friction machine is heavy overall(1-1.5t).Connectors are prone to loosening under prolonged high-speed operation.It is recommended to fully tighten all screws once a month.To prevent components from shaking and causing more serious malfunctions.

2. Regular inspection and maintenance of the transmission system:Regularly check for belt wear.Regularly reinforce the belt pulleys.

3. Emergency handling of circuit malfunctions:If the equipment shuts down due to voltage instability triggering protection.Avoid repeatedly starting it.It is recommended to disconnect the power and leave it undisturbed for 5 minutes before restoring power.Generally, the protection status can be removed and normal operation can be restored.

Purchase Notes:

1. Please refer to the actual conditions (material type, output volume, factory area, etc.).Choose the appropriate equipment model.If you have any questions, please contact our sales staff.

2. Please agree on payment methods, delivery time, logistics ports, and other matters with the sales staff in advance.To ensure the smooth progress of the cooperation.

3. Please inform the sales staff of your actual product needs in advance.Plastic water washing friction machine supports customization.If not informed.The product will be shipped with the default configuration.
