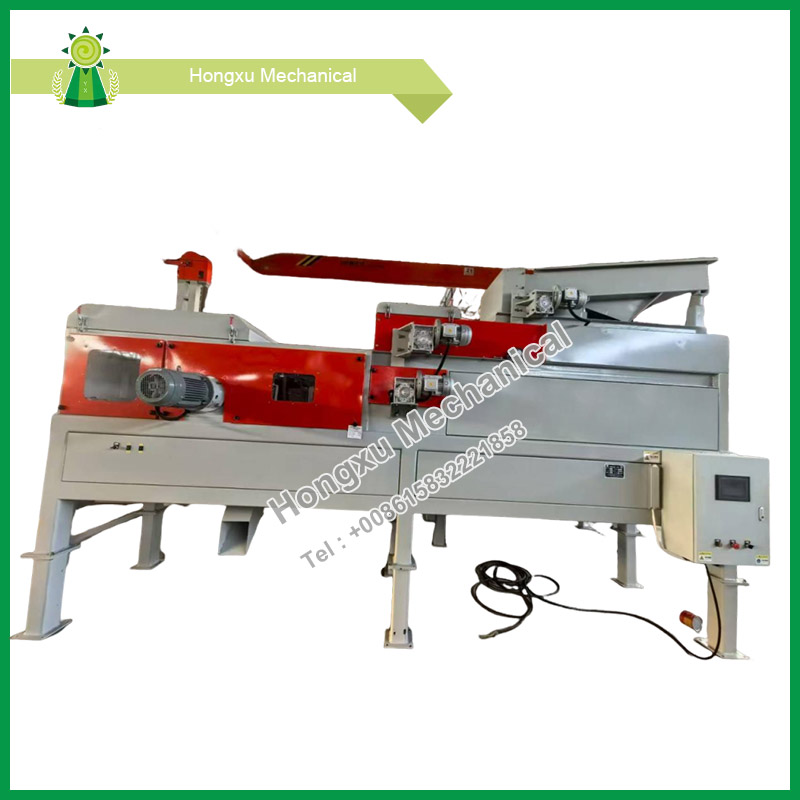

Copper Aluminum Eddy Current Separators

The Copper Aluminum Eddy Current Separators operates based on the principle of electromagnetic induction: a high-frequency alternating strong magnetic field is generated on the surface of the sorting magnetic roller.  After the mixed materials are uniformly fed into the magnetic field sorting area by a vibrating feeder, non-ferrous metals such as copper and aluminum induce eddy currents. The new opposite magnetic field pushes against the original one. This push makes non-ferrous metals jump over a movable baffle and drop into a special bin. Non-metal materials don’t react to magnetism, so they fall down by their own weight.

Core System Components

The Copper Aluminum Eddy Current Separators has five main parts. They help it work well and steadily.

1.Automatic Feeding System: It has a shaking feeder and guide piece. They put materials in evenly and stop jams. So sorting works good right away.

2.High-Frequency Magnetic Field Separation System: It has a strong magnetic roller and shield. These parts make steady, fast magnetic pull. They also block magnetic interference. So sorting is right, and nearby machines stay safe.

3.Intelligent Control System: It has a speed control box and a monitor panel. It lets you change speed, check temperature and warn about issues. This makes using and fixing it easy and quick.

4.Cooling and Protection System: It has water cooling, rust-proof paint on the body, guard rails and an emergency stop button. These let the machine run non-stop and keep users safe.

5.Material Separation and Collection System: It has movable baffles, sorting bins and strong conveyor belts. They fit different material sizes, make moving easy and last a long time.

Core Performance Indicators

The Copper Aluminum Eddy Current Separators works well and fits large-scale recycling needs.

1.Sorting Efficiency: It can handle 0.8-5 tons each hour (for models 400-1500). Its maximum daily capacity is 120 tons, so you can choose the right one for your needs.

2.Sorting Accuracy: Non-ferrous metal separation rate exceeds 99%, with less than 1% residue in non-metallic materials, ensuring the value of recycled materials.

3.Operating Parameters: It uses 4-7.5KW power. It has a frequency conversion system. It uses 15% to 20% less power per unit than old machines.

4.Suitable Materials: It handles 5mm to 50mm copper-aluminum mixes. Things like cut wires and broken home appliances work. No need for careful prep.

5.Environmental Adaptability: Works steady between -10℃ and 45℃. Indoor or outdoor weather won’t bother it.

From efficiency to adaptability, the Copper Aluminum Eddy Current Separators comprehensively meets the core needs of recycled resource recovery.
