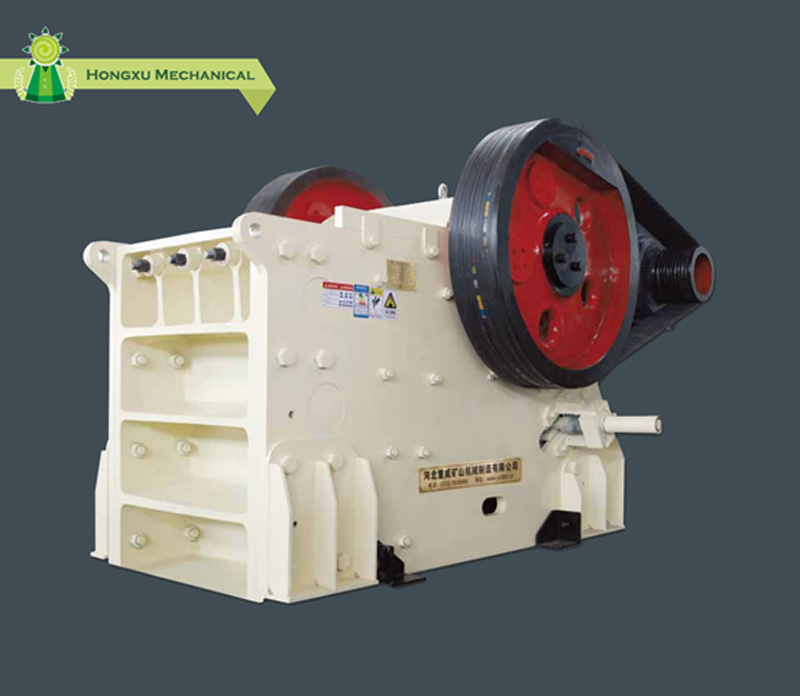

C-Series Jaw Crusher

The C-Series Jaw Crusher is designed specifically for crushing hard materials. It is suitable for use in places like mines, quarries, and solid waste utilization projects. This crusher has a modular, non-welded structure. The structure helps avoid problems caused by weld cracking. It is also equipped with four large-size bearings. These bearings help extend the service life of the movable jaw. Its optimized movable jaw stroke and crushing chamber shape improve production efficiency and reduce tooth plate wear. The tooth plates can be adjusted to suit different materials, and the discharge opening is adjusted using wedges (with optional hydraulic automatic adjustment). Components are made of high-quality alloy steel to ensure stable operation, low vibration, and low noise, meeting environmental standards.

Technical Parameters

The C-Series Jaw Crusher series covers a total of 8 models from C80 to C200, with different core parameters and application scenarios. Details are as follows:

1. Basic Performance Parameters

The capacity varies with the closed-side discharge opening size. The following are reference values for key ranges (based on the working condition of material with average density of 1.6t/m³ and smooth feeding & discharging):

C80: 55-80 t/h when discharge opening is 40mm; 150-190 t/h when discharge opening is 100mm

C110: 220-290 t/h when discharge opening is 100mm; 470-620 t/h when discharge opening is 200mm

C200: 855-1110 t/h when discharge opening is 200mm; 1225-1590 t/h when discharge opening is 300mm

Note: The actual capacity is affected by material moisture content, bulk density and crushability.

2. Overall Dimensions (mm)

Product Advantages

1. High Performance

This C-Series Jaw Crusher has an optimized jaw stroke and crushing chamber shape. It also has a well-balanced bite angle. These features help it achieve a high crushing ratio and high output. At the same time, they reduce the wear of the tooth plate. This crusher is suitable for processing various hard materials, like river pebbles and ores.

2. Stable and Durable

This crusher uses a modular, non-welded structure. This structure gets rid of the risk of weld cracking. It is equipped with four large-size bearings. These bearings help extend the service life of the movable jaw assembly. The crusher’s components are made of high-quality alloy steel. This material ensures the crusher works reliably for a long time.

3. Easy Operation

You can adjust the crusher’s discharge opening flexibly through wedges. If you choose the optional hydraulic system, the crusher can realize automatic adjustment and pre-tensioning. Its overall design makes maintenance easier. This reduces the time when the crusher is out of service and keeps a high uptime rate.

4. Environmentally Friendly

This crusher produces low vibration and low noise when it works. These characteristics meet the requirements of environmentally friendly production. It is suitable for sustainable operations in different scenarios, such as mining and solid waste utilization.

Corporation Support

Hongxu Machinery provides full-cycle support for the equipment, including professional selection guidance, standardized installation assistance, and after-sales response covering equipment maintenance and replacement of wearing parts; at the same time, it can provide customized technical solutions according to customer needs to ensure stable operation and efficient production of the equipment.
