HP Series Multi-Cylinder Hydraulic Cone Crusher

HP Series Multi-Cylinder Hydraulic Cone Crusher stands out for its scientific integration of crushing speed, stroke, and cavity design—this optimized combination not only enhances production capacity and finished product quality significantly but also broadens its application scope to cover diverse scenarios, such as processing limestone, iron ore, producing ballast, manufacturing artificial sand, and matching small mobile crushing stations, enabling it to deliver excellent crushing performance in medium, fine, and ultra-fine crushing operations. In terms of working mechanism, the crusher takes an electric motor as the power core: the motor drives the horizontal shaft, which then drives the eccentric sleeve via gears; the eccentric sleeve rotates around the main shaft fixed on the main frame, and through frictional transmission, it drives the moving cone to drive the crushing wall for a swinging motion. During this process, the periodic change in the distance between the crushing wall and the concave (fixed cone) continuously extrudes and crushes materials, ensuring efficient and stable processing of various ores and rocks.

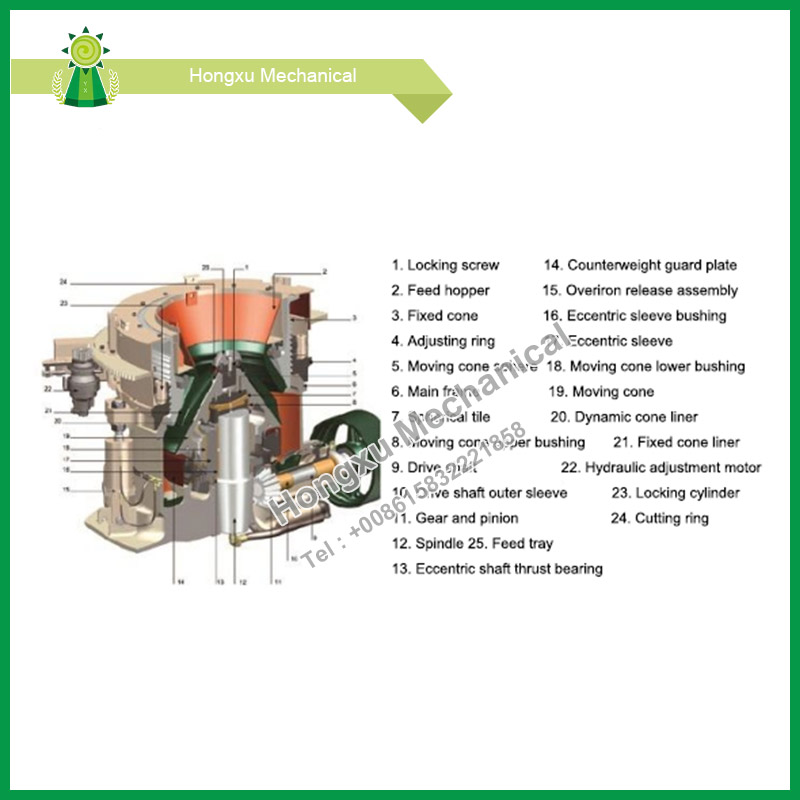

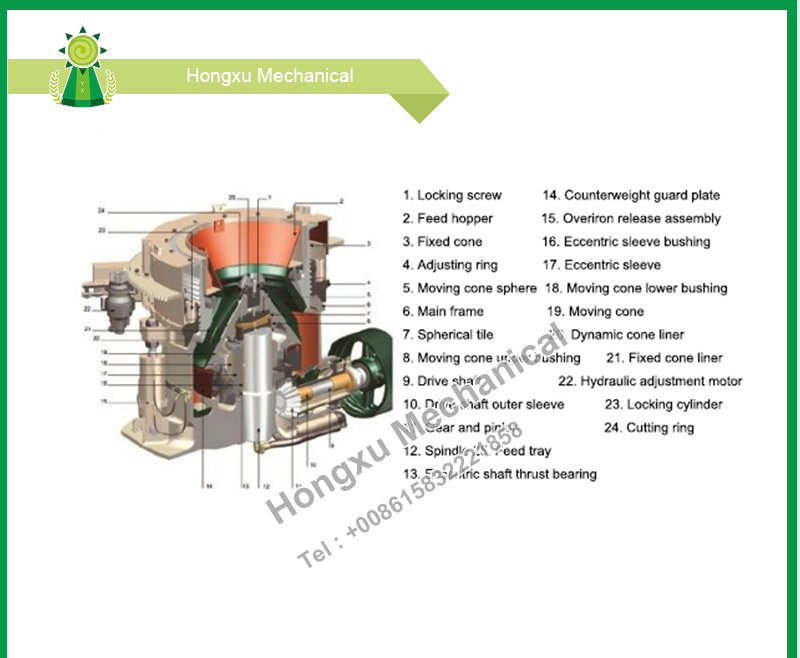

Product Structure

The multi-cylinder hydraulic cone crusher is mainly composed of feeding hopper, fixed cone, moving cone and other parts.

Product Parameter

Because HP Series Multi-cylinder Hydraulic Cone Crusher has different models, in order to clearly show the external size differences between different models, the core parameters are displayed in table form, which is convenient for customers to choose models according to the installation site space and production requirements.

Production Features

1.Superior Performance: Precise rotation speed, large eccentricity, optimized chamber shape, and high power combine to ensure high-performance crushing.

2.Excellent Fine Material Ratio: High-frequency, large eccentricity, and layered crushing result in a high proportion of fine-grained materials and good particle shape in the finished product.

3.Strong Capacity: The crusher is made of sturdy materials, has a large eccentricity, and a sturdy frame. These features cooperate when it is operating at high power. They function well and assist the crusher in crushing a lot of material.

4.Effective Operation and Maintenance: The crusher features a hydraulic chamber clearing function and overload protection. These features facilitate a speedy restart of production. They also cut down on maintenance time and extend the equipment's lifespan.

5.Easy to Use: There is a discharge port on the crusher.Hydraulics can be used to adjust it. Its main components are simple to disassemble and reassemble. It doesn't take long to replace worn parts. This ensures that the crusher will operate for a long time.

6.High Automation: The crusher uses a PLC control system with a touch screen, making operation intuitive. Large production lines can use the crusher to operate fully automatically.After-sales Service

After-sales Service

Hongxu Machinery provides professional after-sales support for its HP series multi-cylinder hydraulic cone crushers. Our team can quickly deal with equipment commissioning and problem fixing. We help with changing wear-resistant parts and offer regular checks. We also adjust the equipment’s settings based on how production is going. This makes sure the equipment runs steadily and well for a long time, and we give full support to our customers’ production work.
