GP series single-cylinder hydraulic cone crusher

Hongxu Machinery Co., Ltd., a professional manufacturer of solid material processing equipment, proudly presents our GP series single-cylinder hydraulic cone crusher. This series of crushers can process hard materials such as granite, is suitable for secondary to quaternary crushing, and allows for multi-chamber switching by replacing wearing parts. Maintenance is also simple. With Hongxu Machinery's comprehensive after-sales service, this series of crushers ensures stable and efficient operation for medium to large-sized sand mining enterprises.

Send Inquiry

Product Description

The GP series single-cylinder hydraulic cone crusher takes an electric motor as its power source. It uses a horizontal shaft and gears to transmit power, which drives the eccentric sleeve to rotate. Then, this rotation makes the crushing wall do an eccentric oscillating motion. During crushing operations, a periodic change in the distance between the crushing wall and the jaw wall occurs, thereby achieving continuous compression and crushing of hard materials such as granite, ore, and river pebbles, completing the processing from raw materials to finished products meeting particle size requirements. The equipment adopts a modular design; the same main unit can switch between different chamber types for coarse, medium, and fine crushing simply by replacing the wear-resistant parts. Furthermore, the discharge port can be dynamically adjusted by hydraulic pressure while the equipment is running. Combined with precision-machined wear-resistant parts (no packing required for installation), this significantly simplifies operation and maintenance, making it suitable for the multi-process crushing needs of large and medium-sized sand and gravel and mining enterprises.

Technical parameters

model	cavity	Feed port (mm)	Maximum feed particle size (mm)	Minimum material discharge (mm)			Maximum discharge (mm)			Motor power (KW)	Main unit weight (kg)
model	cavity	Feed port (mm)	Maximum feed particle size (mm)	stroke	stroke	stroke	stroke	stroke	stroke
GP100				18	22		18	22		75-90	6000
	A	150	120	12	15		39	36
	B	130	105	10	13		33	30
	C	100	80	7	10		33	30
	D	40	32	5	7		31	29
GP220				18	25		18	25		132-160	11500
	A	220	180	18	22		35	31
	B	150	120	15	19		35	30
	C	80	60	9	12		35	30
	D	40	32	6	8		35	30
GP300				25	32	40	25	32	40	185-220	15000
	A	230	190	20	25		45	40	35
	B	150	125	17	20		45	40	35
	C	80	60	10	13		40	35
	D	40	32	6	8		40	35
GP330				25	32		25	32		200-250	16500
	A	230	190	20	25		45	40	40
	B	150	125	17	20		45	40	35
	C	80	60	10	13		40	35	35
	D	40	32	6	8		40	35
GP500				25	32	40	25	32	40	250-280	22500
	A	230	190	22	26	30	50	45	40
	B	150	120	19	22	26	48	43	38
	C	100	80	12	14	16	40	35	30
	D	50	40	8	10	12	30	25	20
GP550				25	32	40	25	32	40	280-315	25500
	A	230	190	22	26	30	50	45	40
	B	150	120	19	22	26	48	43	38
	C	100	80	12	14	16	40	35	30
	D	50	40	8	10	12	30	25	20
GP660				25	32	40	25	32	40	315-355	30500
	A	275	220	22	26	30	50	45	40
	B	170	130	19	22	26	48	43	38
	C	100	80	12	14	16	40	35	30
	D	50	40	8	10	12	30	25	20
GP870i				32	52	80	32	52	80	560-630	58200
	A	330	270	20	25	30	82	108	130
	B	230	190	18	20	25	82	108	130
	C	130	100	14	18	20	72	98	120
	D	90	70	12	14	18	72	98	120
GP890i				24	48	70	24	48	70	700-750	84900
	A	480	420	107	95	84	131	143	154
	B	440	380	81	69	58	105	117	128
	C	260	210	75	63	52	99	111	122
	D	170	130	69	57	46	93	105	116
GP890i				24	48	70	24	48	70	700-750	84900
	A	480	420	107	95	84	131	143	154
	B	440	380	81	69	58	105	117	128
	C	260	210	75	63	52	99	111	122
	D	170	130	69	57	46	93	105	116
GP895i				24	48	70	24	48	70	700-750	84300
	A	130	104	74	62	51	98	110	121
	B	105	85	72	60	49	96	108	119

The production capacity figures in the table are for reference only and apply only to medium-hardness granite with a bulk density of 1.6 t/m³ when the crushing chamber is full. Reference outputs for other materials can be approximated by converting bulk density.

Different chamber types and strokes have different applicable discharge port ranges. Find the allowable discharge port size in the main parameter table and combine it with the production capacity reference. The maximum discharge will increase as the crushing wall and grinding chamber wall wear down.

Structural Analysis

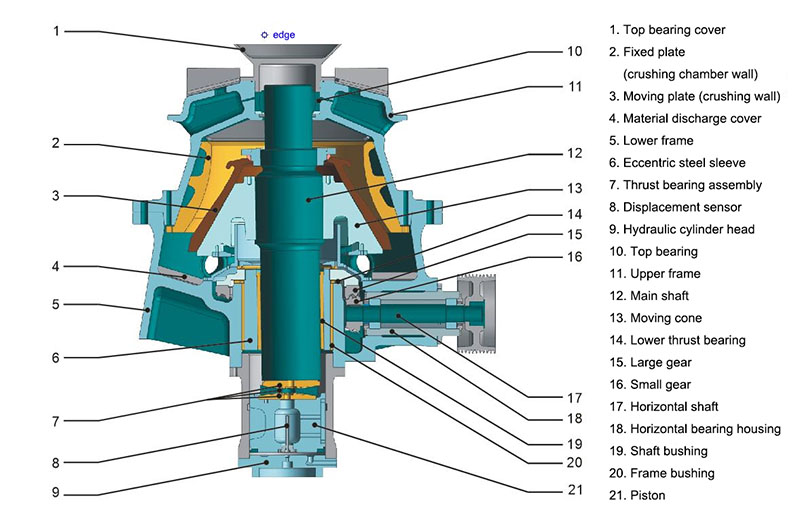

This diagram shows the structure of the GP series single-cylinder hydraulic cone crusher, which mainly consists of a top bearing cover, a fixed plate (jaw wall), a moving plate (crushing wall), a frame, an eccentric steel sleeve, a hydraulic system, and transmission components.

GP series single-cylinder hydraulic cone crusher

Product Features

1.Multi-chamber adaptability: The same main unit can switch between coarse, medium, and fine crushing chambers just by replacing wear-resistant parts. It covers secondary to quaternary crushing scenarios and flexibly matches different process requirements.

2.Excellent finished product particle shape: The crusher has an optimized crushing chamber structure, reasonable crushing frequency and eccentricity. When combined with the layered crushing principle, it produces finished products with uniform particle size and regular particle shape, which meet high-grade aggregate standards.

3.Outstanding capacity performance: A robust frame supports high-power operation, and the large eccentricity design further increases material throughput, enabling stable high-volume crushing operations.

4.Controllable overall cost: Optimized chamber design and high-quality wear-resistant parts reduce unit steel consumption. Layered crushing and full-feed modes improve equipment utilization and effectively control production costs.

5.Convenient and efficient operation and maintenance: The crusher's discharge port supports dynamic hydraulic adjustment. You can adjust it to the ideal power with one button when the crusher is running. Its wear-resistant parts are precision-machined, so you don't need to use filler when installing them. This allows quick replacement of the parts and significantly reduces downtime.

6.High degree of automation: The crusher is equipped with a PLC control system. The equipment's operating data and status are shown on the touch screen in real time. The operation is easy to understand and simple. Large production lines can run fully automatically, which reduces the need for manual work.

After-sales Guarantee

Hongxu Machinery offers complete after-sales support for its GP series single-cylinder hydraulic cone crusher. The company’s professional team can quickly respond to needs such as equipment setup and fixing machine faults.The team also gives guidance on replacing wear-resistant parts and offers regular inspection services. Besides, the team will optimize equipment parameters based on customers’ production conditions to make sure the equipment runs stably and efficiently for a long time.
