gp-series single-cylinder hydraulic cone crusher

Hongxu Machinery, a China GP series single-cylinder hydraulic cone crusher factory and manufacturer, offers this Made-in-China equipment for medium and large sand/mining enterprises to buy. It suits hard material crushing, with easy-maintainable advantages, supporting bulk orders and providing GP-S Series Single-Cylinder Hydraulic Cone Crusher price, quotation and quality products.

Product Description

The GP series single-cylinder hydraulic cone crusher is built with internationally leading technology. It features a robust and ingenious structure, a large crushing ratio, and high productivity and output. It is suitable for large and medium-sized sand and gravel and mining processing enterprises. It can perform secondary crushing or even coarse crushing of hard materials such as rocks, ores, and river pebbles. The crushing process is driven by a horizontal shaft driven by an electric motor, which drives an eccentric sleeve through gears. The eccentric sleeve then drives the crushing wall to perform an eccentric oscillating motion. The material is crushed by the periodic change in distance between the crushing wall and the grinding bowl. It also has the advantages of simple operation, low maintenance, low operating costs, wide applicability, and high equipment utilization.

The production capacity and screening curves in the table are for reference only and apply only to medium-hardness granite with a bulk density of 1.6 t/m³ when the crushing chamber is full. Reference outputs for other materials can be approximated by converting bulk density.

Different chamber types and strokes have different applicable discharge port ranges. Find the allowable discharge port size in the main parameter table and combine it with the production capacity reference. The maximum discharge will increase as the crushing wall and grinding chamber wall wear down.

Structural Analysis

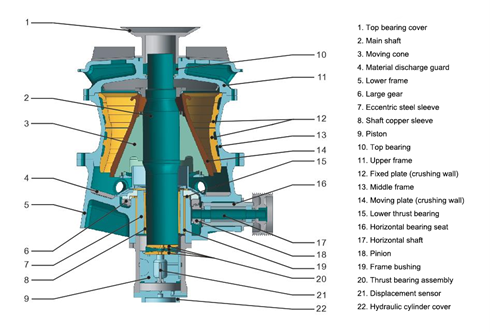

The schematic diagram of the GP series single-cylinder hydraulic cone crusher shows that it consists of core components such as the top bearing cover, main shaft, and moving cone.

Product Features

1. High crushing efficiency: Optimized crushing chamber design combined with reasonable eccentricity and rotational speed, along with the principle of layered crushing, ensures more thorough material crushing and produces well-formed finished particles, meeting the requirements for high-grade aggregates.

2. Strong structural reliability: Utilizing a heavy-duty frame (5, 11, 13) and high-strength alloy components (such as the main shaft 2 and moving cone 3), it is impact-resistant, wear-resistant, and can withstand long-term crushing loads of large-tonnage materials.

3. Excellent ease of maintenance: The hydraulic system allows dynamic adjustment of the discharge port during operation; key wear-resistant parts (fixed plate 12, moving plate 14) require no filler for installation and can be replaced quickly; the PLC control system, equipped with displacement sensor 21, monitors equipment status in real time and provides timely fault warnings.

4. Wide applicability: Suitable for secondary crushing and even coarse crushing of various hard materials such as granite, ore, and river pebbles, meeting the diverse process needs of large and medium-sized sand and gravel and mining enterprises.

Contact us

If you want to know the detailed specifications, pricing, or customization services of the GP series single-cylinder hydraulic cone crusher, please contact Hongxu Machinery. You can leave a message on our website, use WhatsApp, or send an email. Our professional team will give you timely and professional technical support and procurement consultation.

Product parameters table
