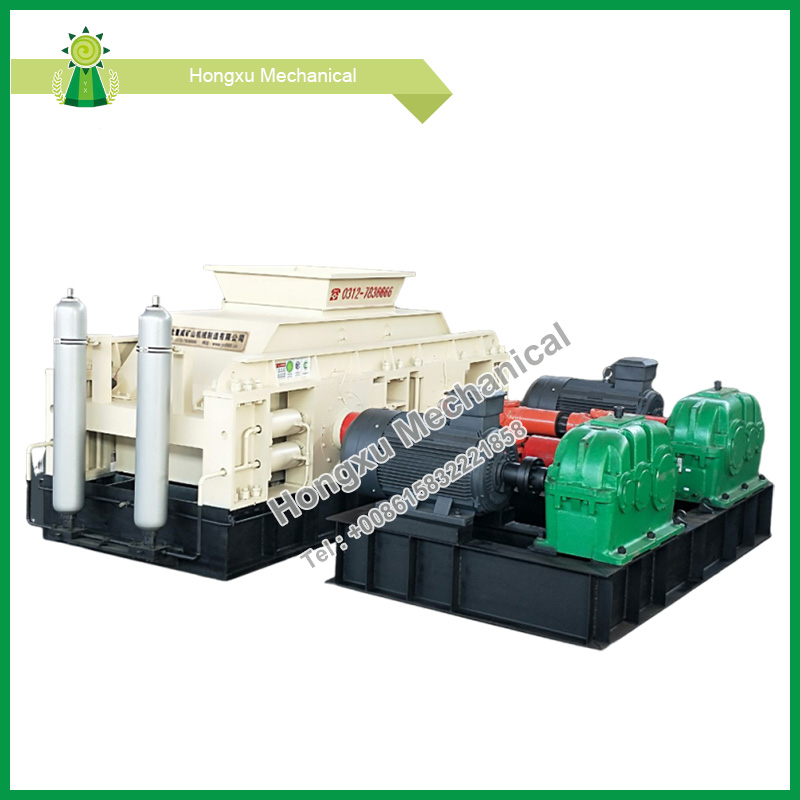

2PG Series Hydraulic Double Roller Sand Making Machine

Product Description

The 2PG Series Hydraulic Double Roller Sand Making Machine is a high-efficiency equipment. It has a simple structure, runs reliably and uses little energy. This machine has obvious advantages in fine crushing operations. It can effectively crush high-hardness materials like rocks and pebbles. The machine is widely used in various industries including cement, refractory materials, bauxite clinker, stone materials, glass raw materials, building sand, quartz sand and metallurgical mine mining and crushing.

Composed of two identically synchronized rotating squeeze rollers (one fixed and one movable), the machine feeds materials from above the rollers and discharges them after passing through the gap between the two rollers. The squeezing force between the rollers is adjustable (50-200MPA), and the discharged particles generate a lot of internal cracks under high pressure, which can reduce energy consumption in further crushing processes. The 2PG Series Hydraulic Double Roller Sand Making Machine has a high finished product rate. The finished materials that are smaller than the discharge port make up as much as 70%. This machine can meet the needs of various sand making scenarios.

Product Parameter

Since the 2PG Series Hydraulic Double Roller Sand Making Machine is available in different models, customers can choose according to their needs.

Product Features

1.Adjustable Pressure & Stable Operation：It adopts hydraulic adjustment for the discharge port, and the accumulator combined with the hydraulic system ensures the crusher works continuously under constant pressure. The hydraulic system has overload protection function to prevent damage caused by metal entering the crushing chamber, and the machine automatically resumes operation after metal removal.

2.High Finished Product Rate：The reasonable design of the squeeze rollers and adjustable pressure ensure that the finished product rate is as high as 70%, and the particle size is uniform, meeting the quality requirements of building sand and other products.

3.Simple Structure & Easy Maintenance：The 2PG Series Hydraulic Double Roller Sand Making Machine has a compact structure. It has a small volume and needs little installation space, so it’s simple to operate. This machine has a low maintenance rate. Daily maintenance of it saves time and effort, and it also reduces the labor intensity of operators.

4.Environmental Protection & Low Noise：The 2PG Series Hydraulic Double Roller Sand Making Machine has good sealing performance. This performance effectively reduces dust emission when the machine is running. At the same time, the machine makes low noise when working. It meets environmental protection requirements and creates a good working environment.

Company Advantages

Hongxu has rich experience in developing and producing 2PG Series Hydraulic Double Roller Sand Making Machine. All these products meet relevant national standards and quality management system requirements. We provide careful after-sales services. These services include guiding installation, training on maintenance and responding quickly to fault problems. These services help reduce the time the equipment is not working. We focus on customer needs. We can provide targeted solutions according to the characteristics of different industries and the requirements for production capacity. We also establish long-term cooperative relationships with customers, so that both sides can achieve win-win development.
